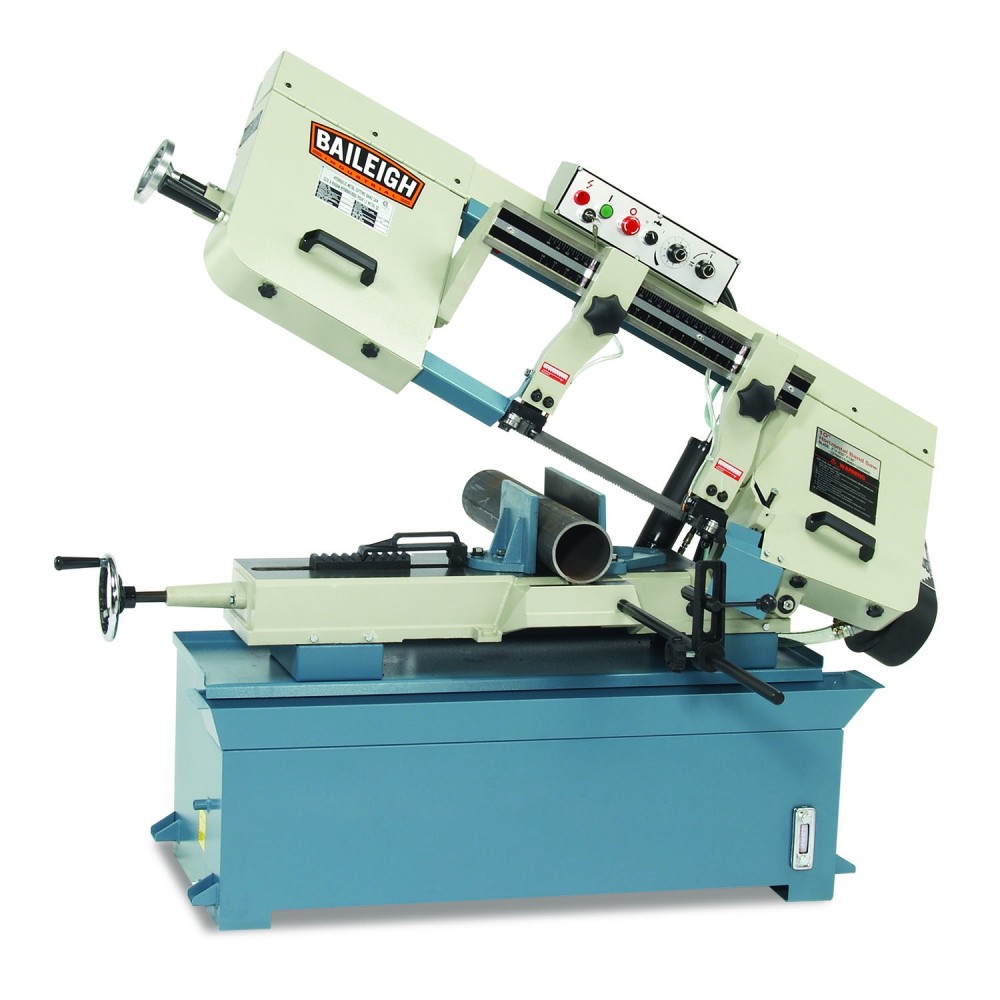

Baileigh BS-300M Horizontal Band Saw Vise Mitering 240V 1 Phase
Do you love old-time American-style band saws-and how well they handle? The variable-speed, horizontal band saw band saw BS-300M updates that sturdy design with time-saving features.
Features
2HP motor runs on 240V 1 Phase power, so any shop can reap the benefits of this saw, 9.75 In. round maximum capacity at 90 Deg
Cuts almost anything that you can throw at it, including many different shapes and profiles of metal

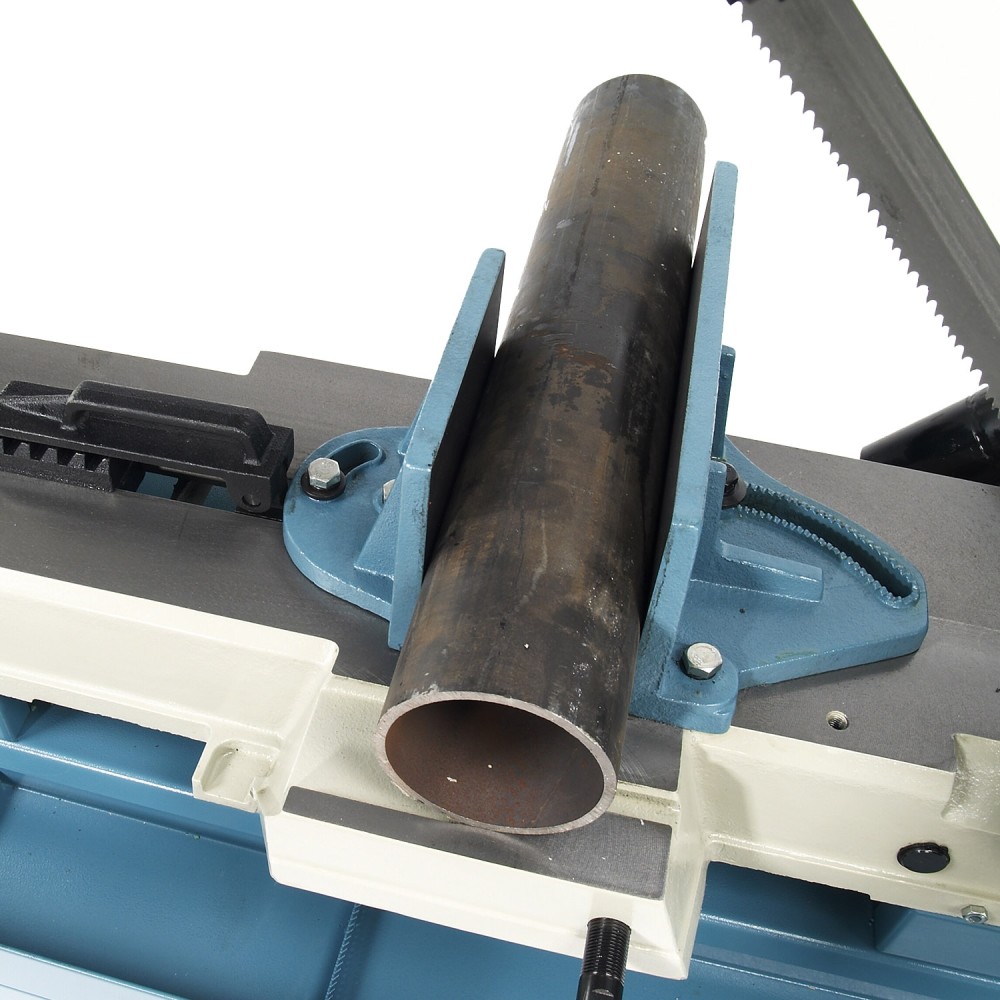

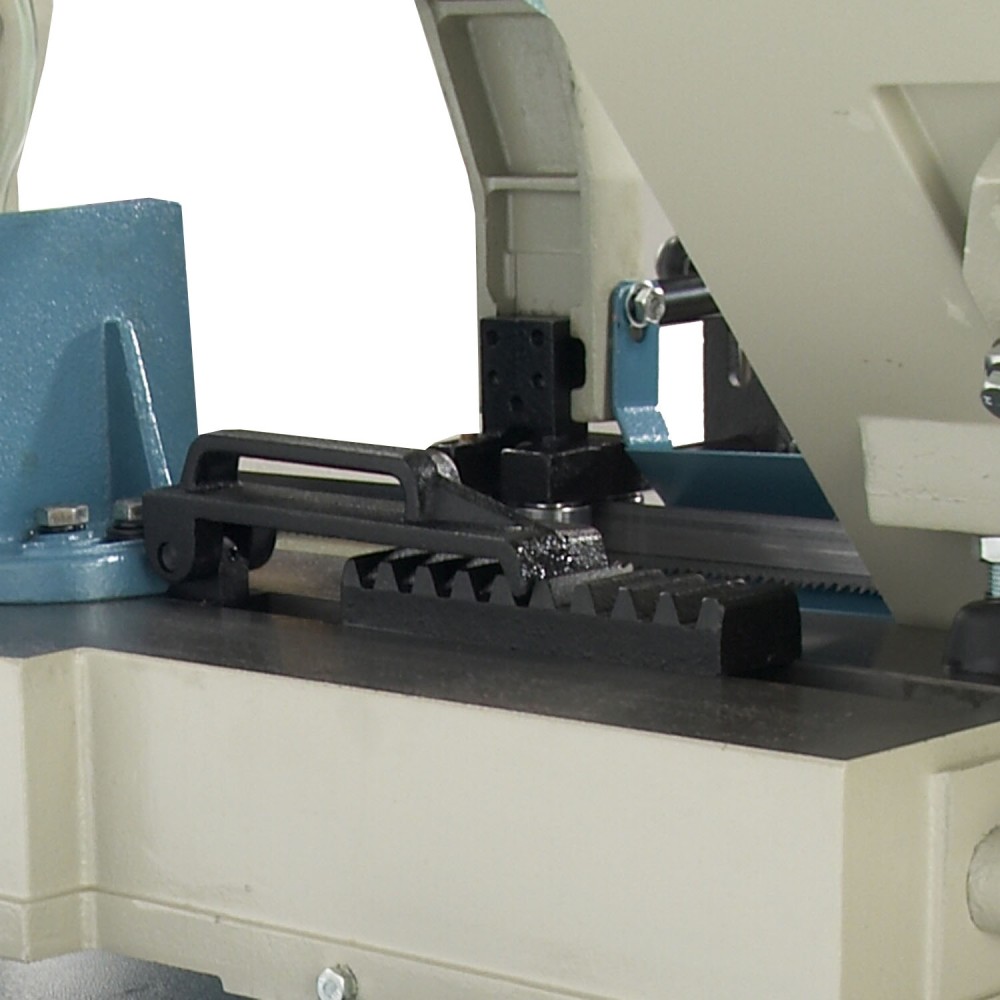

Vise miters up to 45 Deg, standard 1 In. blade width

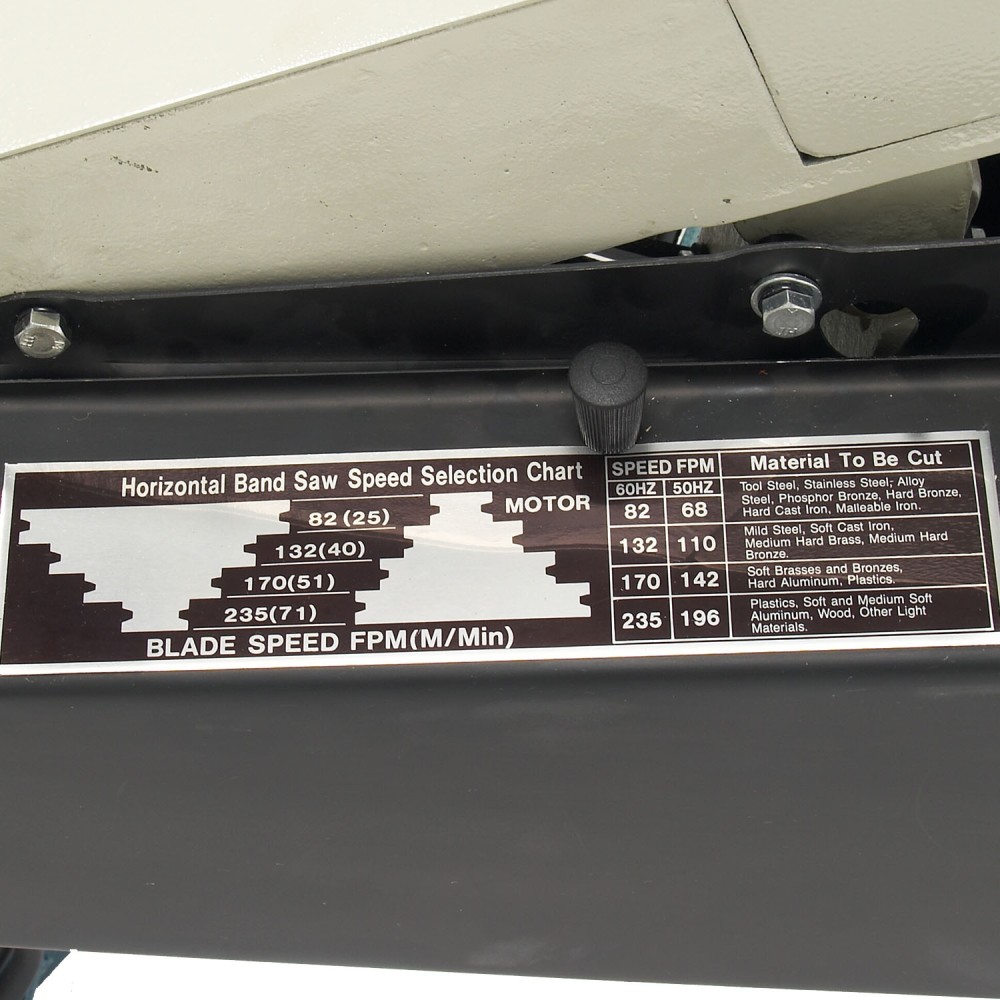

4 cutting speeds (82, 132, 170, 235 Fpm) allow you to fine-tune the saw for better cut quality
Includes our patented blade tension device a liquid-filled gauge that makes it easy to check whether or not your blade is properly tensioned

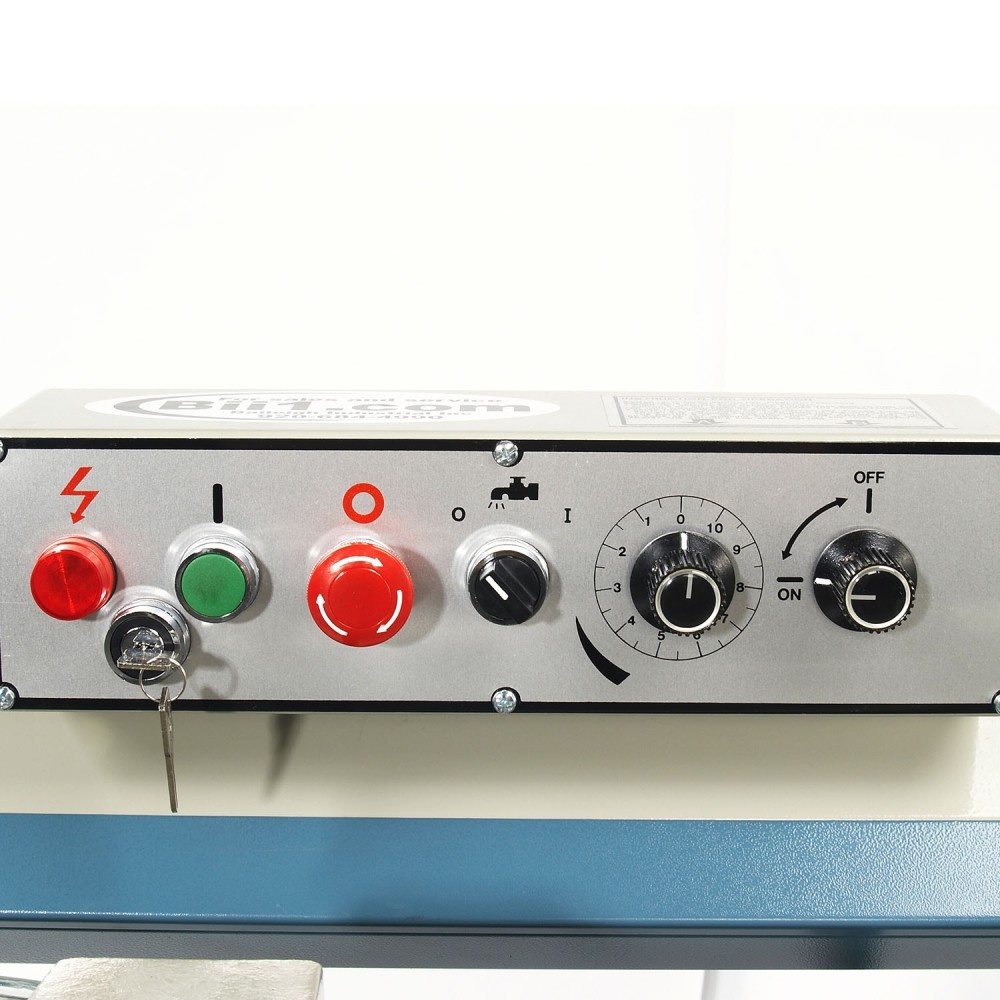

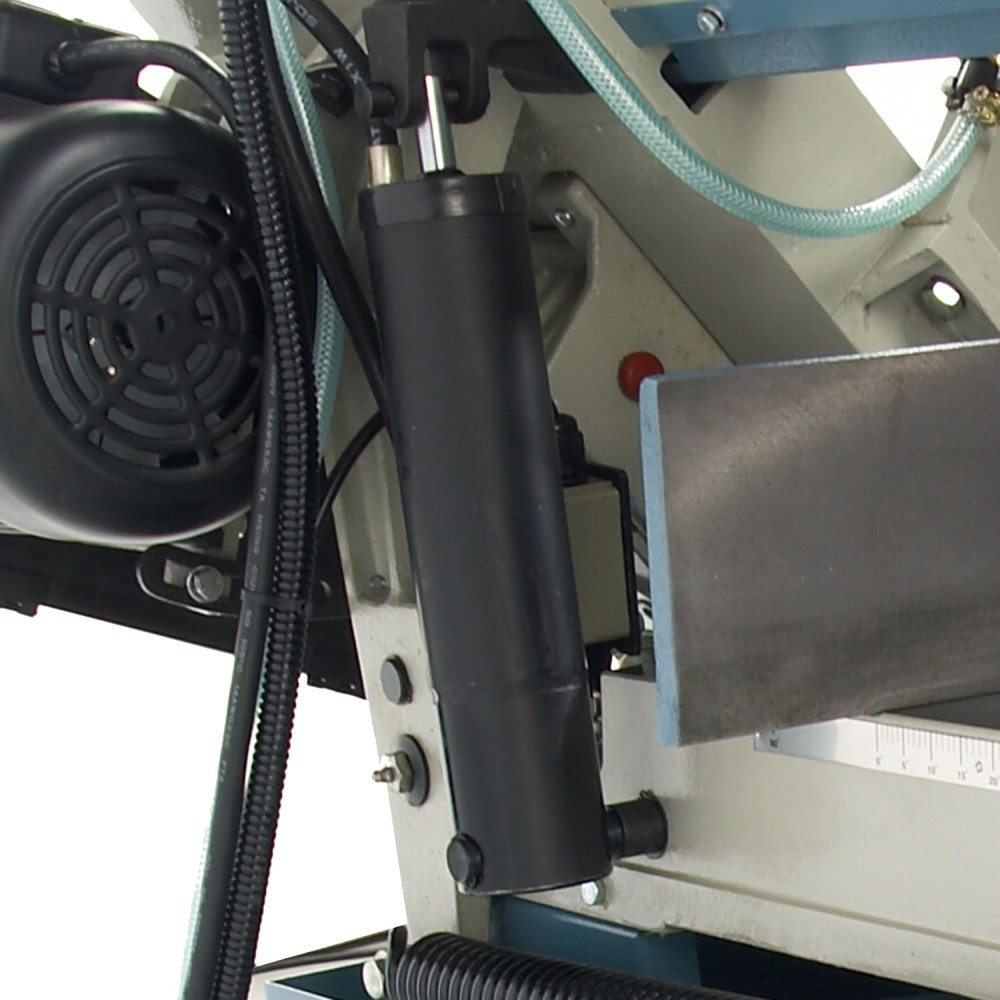

Hydraulic descent pressure controlled by a panel located on top of the bow
Automatic shutoff feature at the end of the cut reduces operator effort and keeps your shop safe

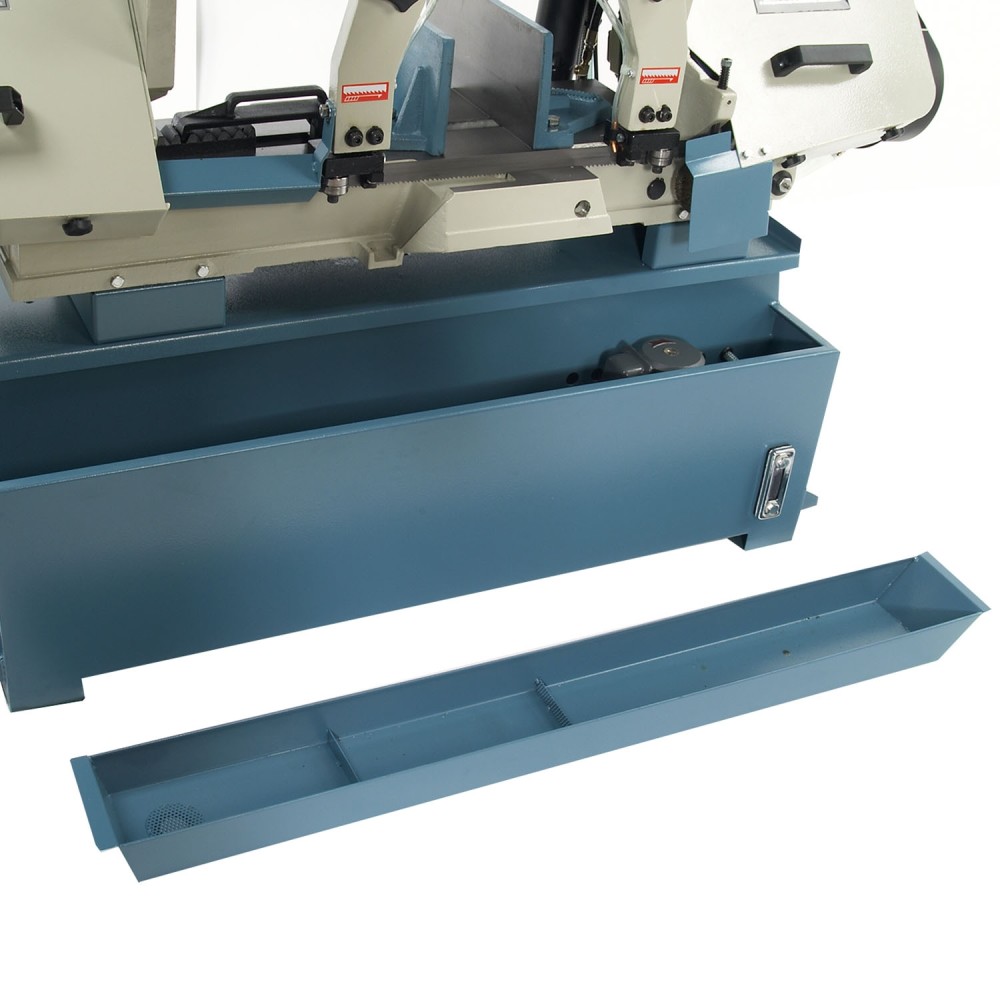

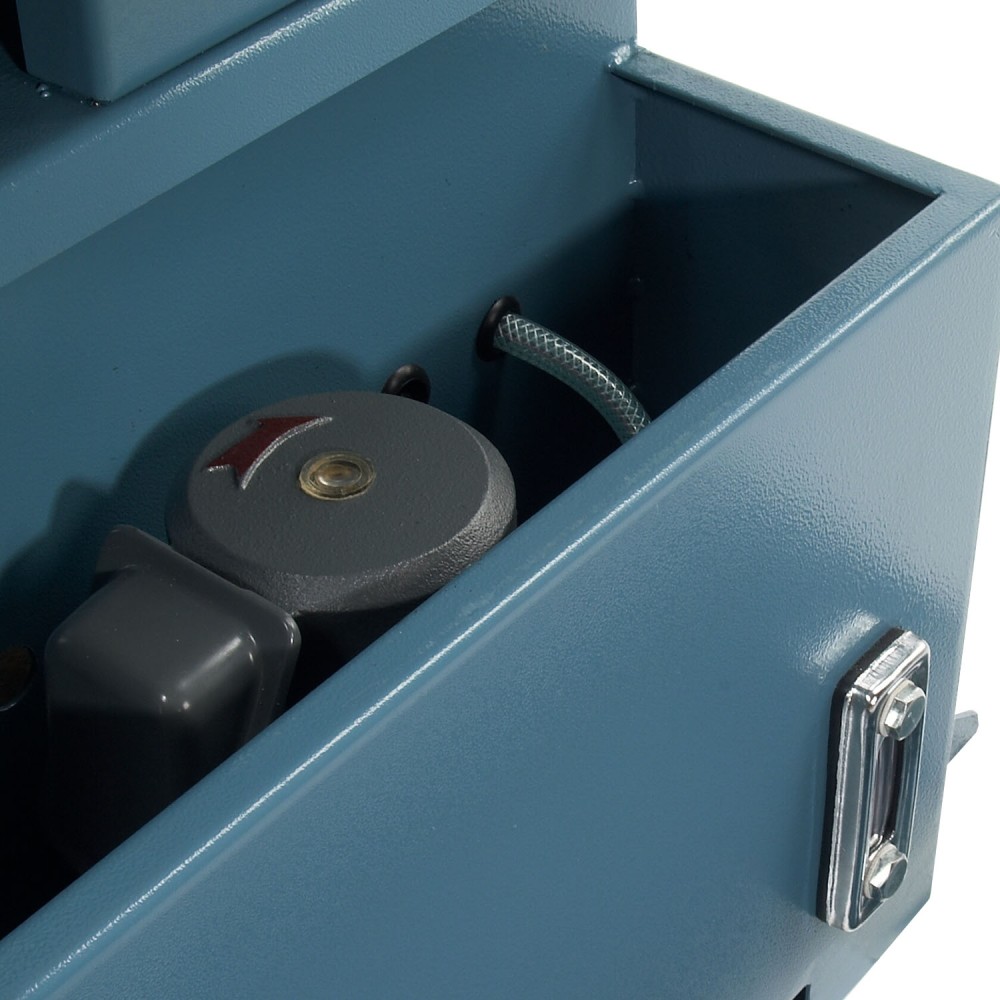

Comes standard with a flood coolant system (which some companies charge extra for) to wash away metal chips, help blades last longer, and reduce expenses
Fully-welded steel base minimizes vibrations to deliver clean, accurate cuts and adds structural strength to the machine. This saw can take a lot of punishment!
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1001492
Assembled Weight (lbs)
845
Band Saw Frame Material
Steel
Blade Guide Type
Bearings
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutting Capacity Height (in)
Rectangular (90 Deg x 45 Deg): 9.84 In. x 16.33 In./9.84 In. x 7.50 In.; Round (90 Deg x 45 Deg): 9.84 In. x 7.5 In.; Square (90 Deg x 45 Deg): 9.84 In. x 7.5 In.
Horsepower (hp)
2
Maximum Blade Length (In)
129.92
Maximum Blade Width (In)
1
Maximum Feet Per Minute
235
Minimum Feet Per Minute
82
Package Contents
Band Saw, Blade Tension Device, Accessories
Package Depth
69
Package Height
48
Package Weight
845
Phase
1
Speeds
4
Stand Included
No
Table Height (in)
30.7
Table Height From Floor (In)
30.7
Variable Speed
Yes
