Description

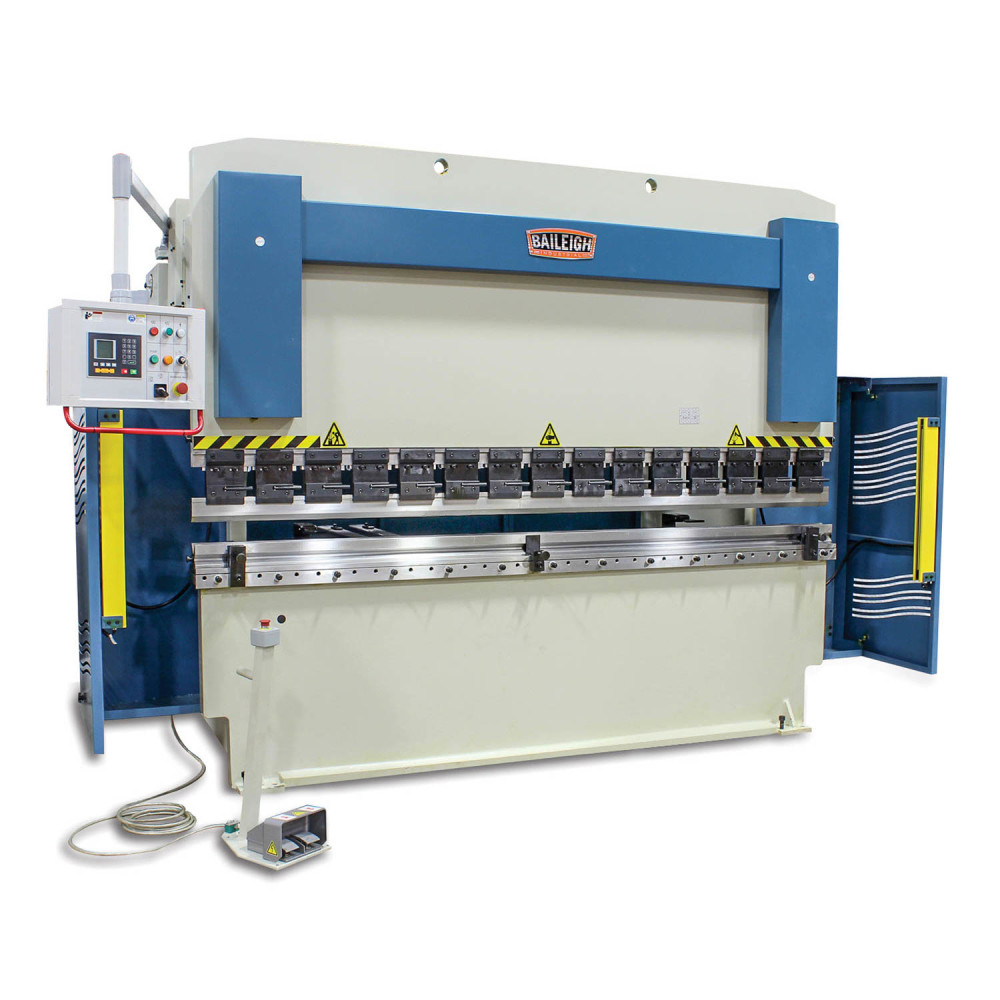

Baileigh BP-22413CNC Hydraulic Press Brake 157″ 224 Ton
To bend 10 Ft. metal sheets, this industrial press brake uses a durable Vickers/Eaton® pump. Anyone can learn to program the controller. The rigid steel frame maintains accuracy.
Features
Delivers a whopping 224 tons of pressure, Offers 13 Ft. length (157 In.) and 123 In. of distance between the housings, Runs on 220V 3 Phase power
Industrial-grade hydraulic system with a Vickers/Eaton® pump will keep the machine running smoothly and reliably
Torque tube connects the 2 hydraulic cylinders, so they stay synchronized and parallel to the bending table at all times
Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine stays balanced and lasts longer
Hydraulic cylinders are near the back of the machine for convenient fluid changes
Runs in single-bend mode or programmable mode

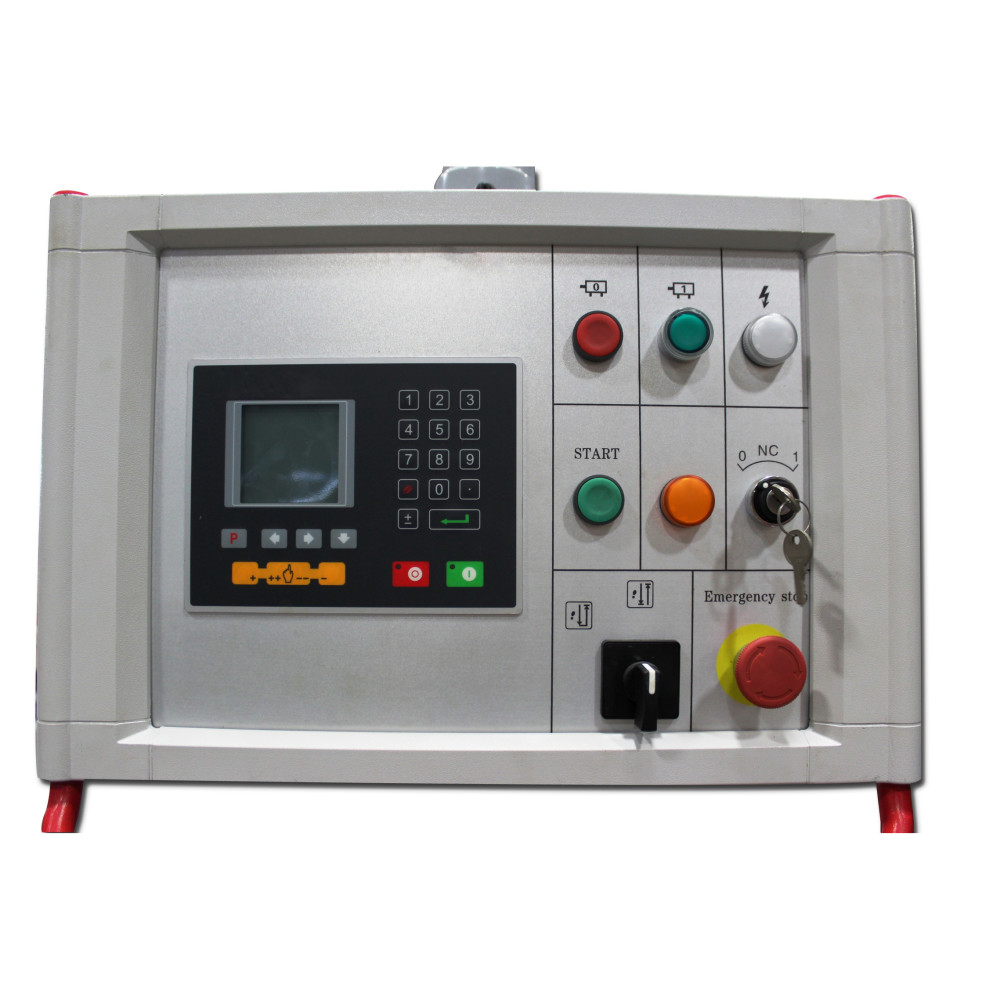

Comes standard with 2 axes of control – stroke and back gauge distance, Controller is so simple that you could train someone to use it in 5 minutes
Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production
Bending is accurate to +/- 0.01 mm, ensuring that parts come out right the first time
Baileigh BP-22413CNC 220V 3 Phase 157 In. 224 Ton 2-Axis Programmable Hydraulic Press Brake
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1000791
Assembled Weight (lbs)
24640
Bending Length Capacity (in)
157
Country of Origin
Taiwan
Material
Steel
Package Contents
224 Ton Hydraulic Press Brake
Package Depth
166
Package Height
103
Package Weight
24640
