Description

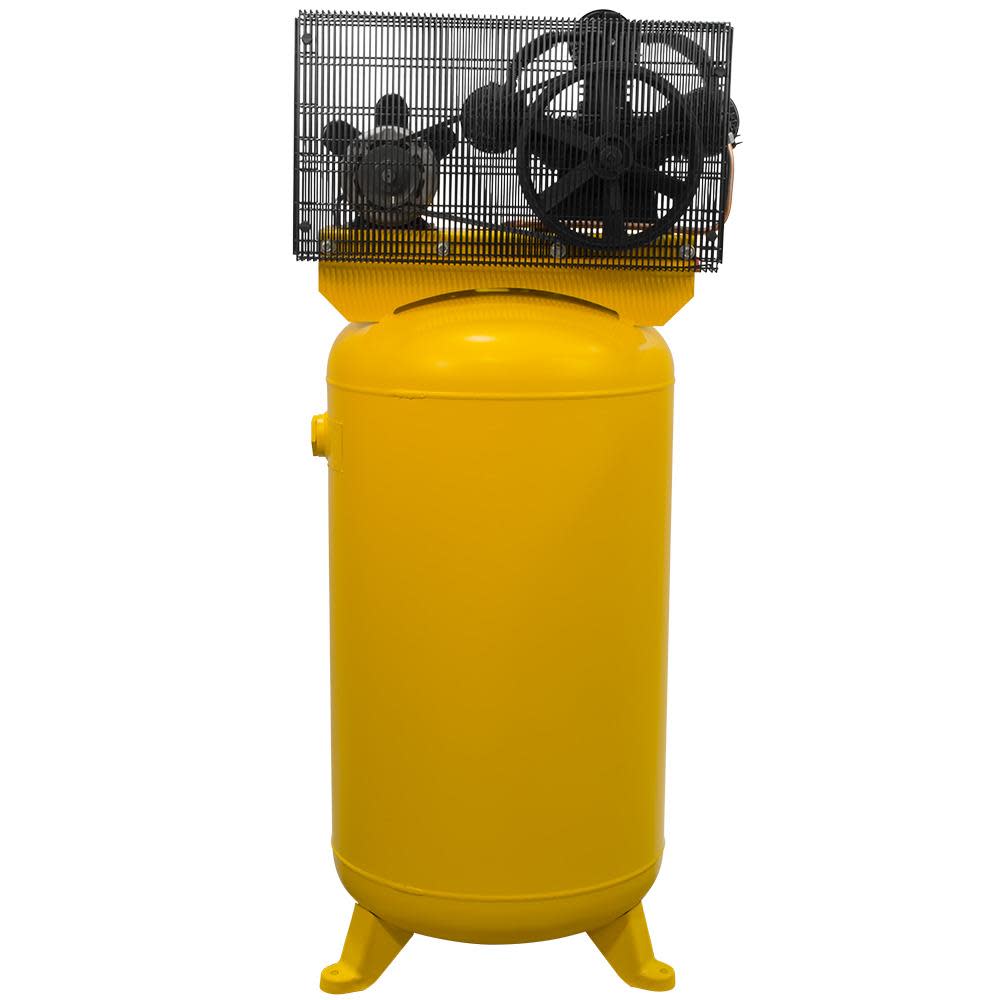

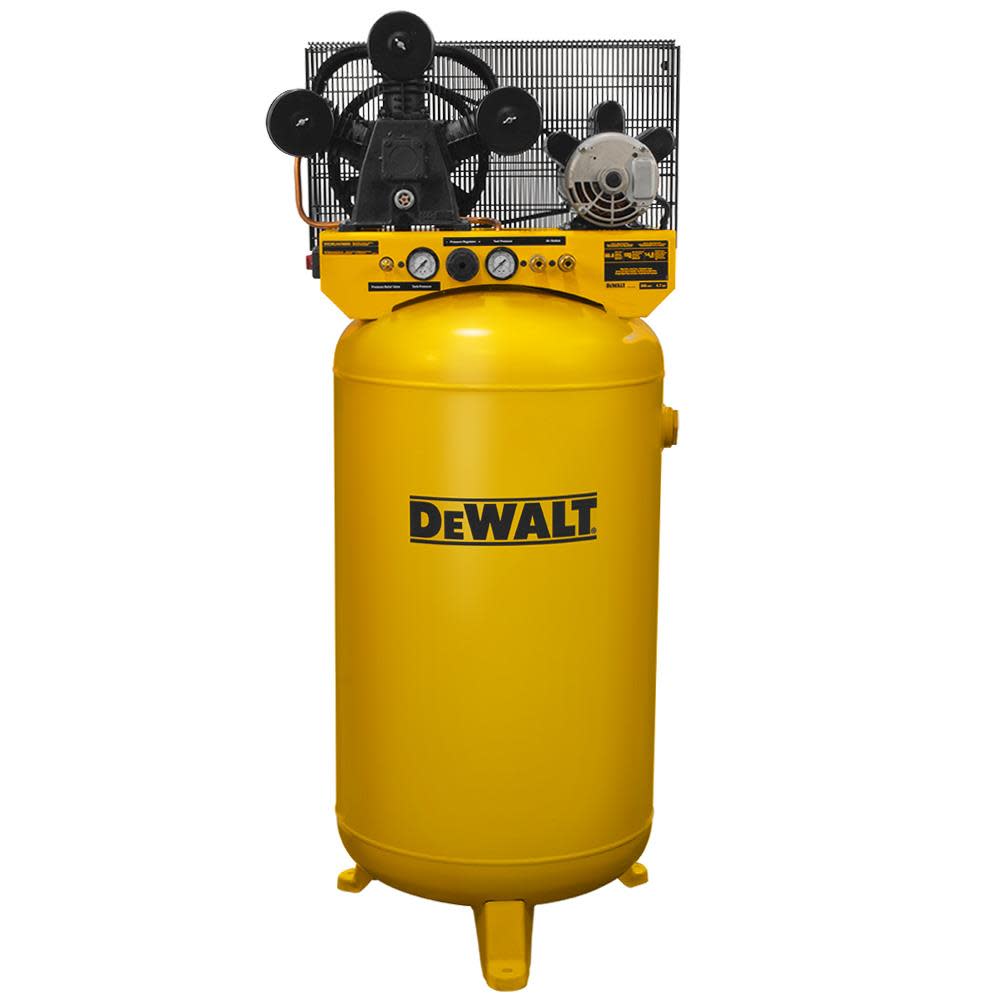

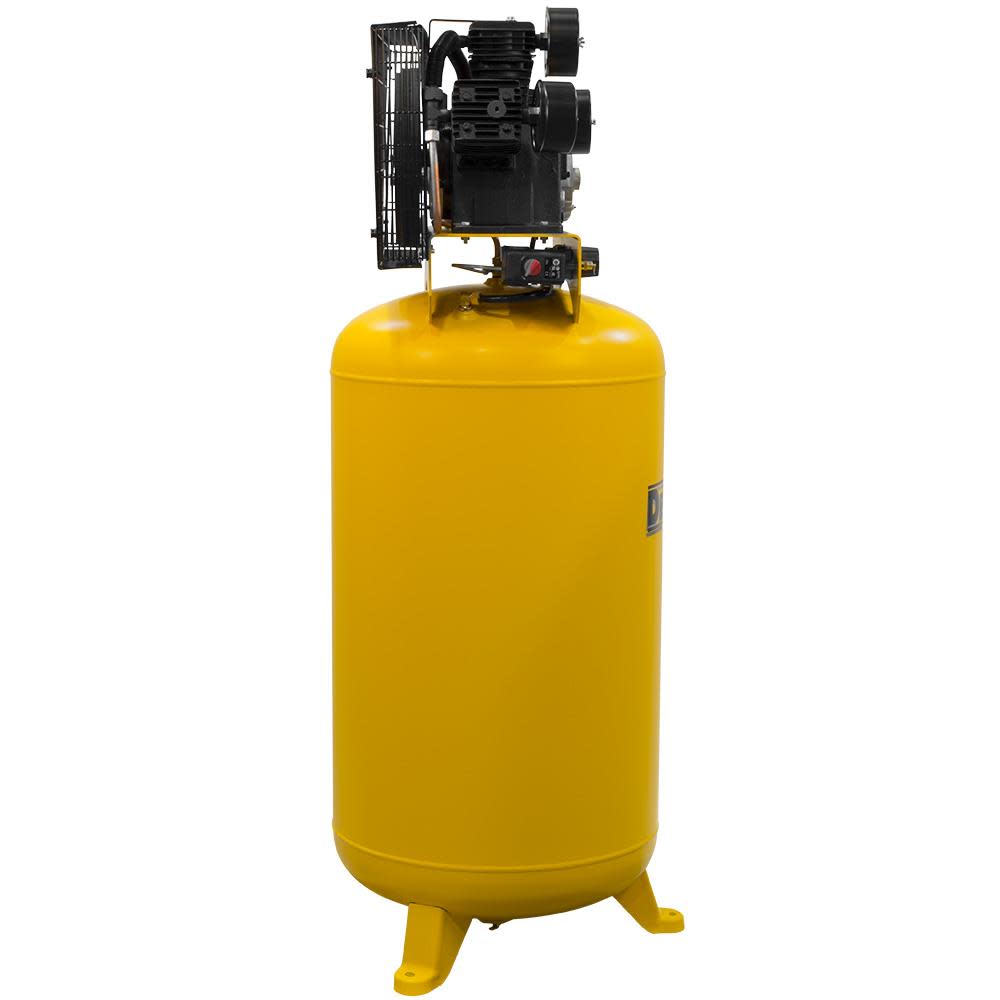

80-Gallon 155-PSI Electric Vertical Air Compressor

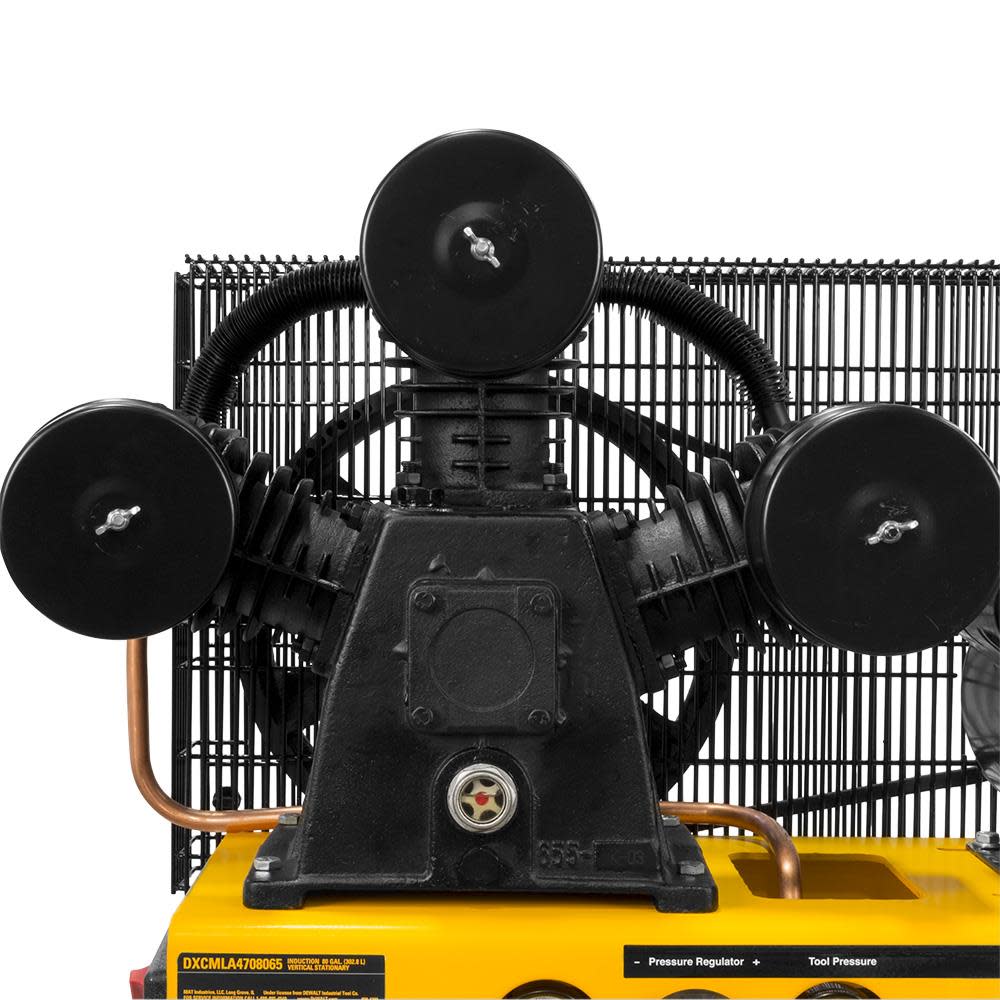

Dewalt 80 Gallon vertical stationary electric air compressor features a cast iron, 3-cylinder, oil lubricated pump with a 1-piece cast iron crankcase, full cast iron cylinder body, durable Swedish stainless steel flex leaf valves, oil level sight glass, easily accessible oil fill, 12 in. cast iron balanced flywheel and large intake filter/silencers. A large capacity, 80 Gallon ASME air receiver provides more air for longer run times on air tools such as ratchets, impacts, spray guns, hammers, etc. 155 max PSI provides optimum tool performance.
Features
DEWALT 80-gal, 155-PSI vertical electric air compressor has the power to handle a variety of projects

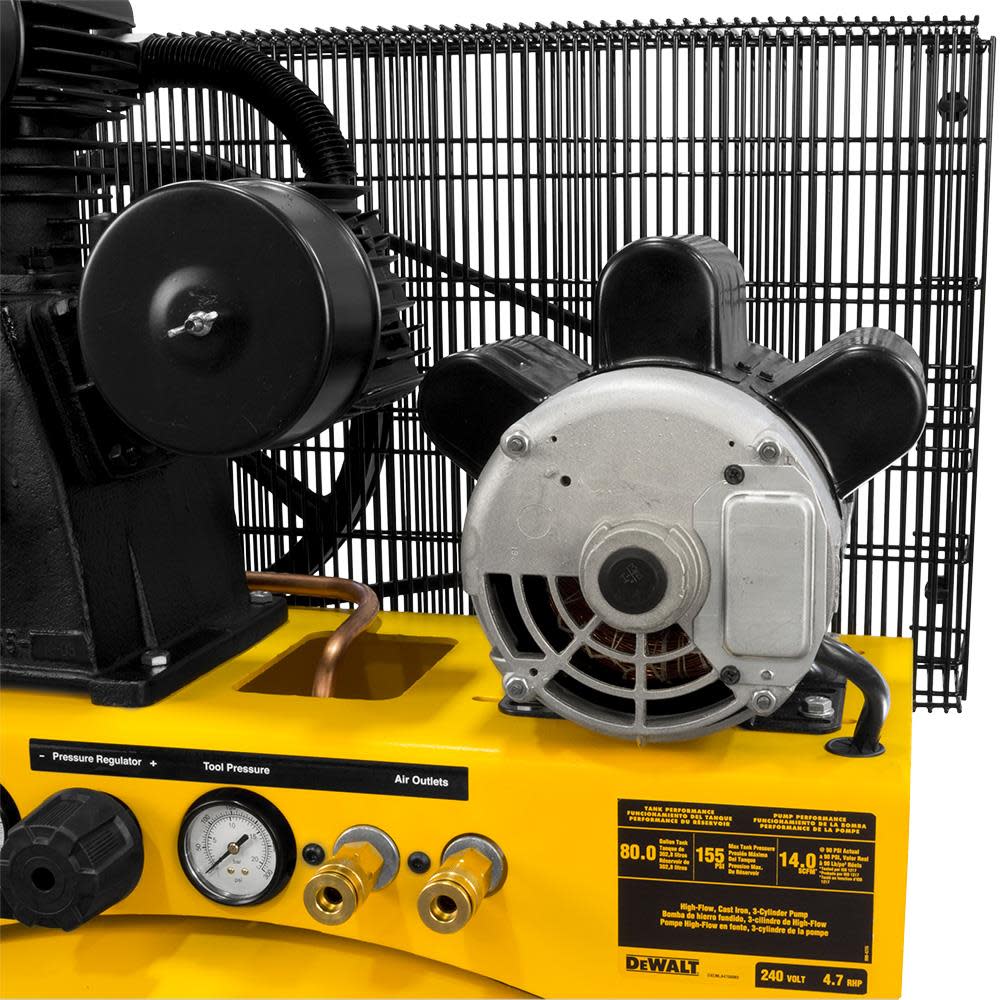

230-volt, 4.7-HP heavy-duty induction motor with belt drive oil lube design for long life and quiet performance
3 feet are centered on the base for increased stability
Pressure gauge allows you to eliminate damage to the tool
3-cylinder, single-stage unit is the ideal upgrade when wall plug-in units don’t meet your demands
2-year limited warranty gives you peace of mind
Specifications
Acme Tools Brand Name
DEWALT
Acme Tools Part Number
DXCMLA4708065
Air Compressor Pump Design
Oil Lubricated
Amperage (A)
22
Assembled Weight (lbs)
354
California Proposition 65 Warning Required
Yes
Color / Finish
DEWALT Yellow
Compressor Design
Vertical
Cordless / Corded
Corded
Country of Origin
United States
CSA Certified
Yes
ETL Listed
No
Height (in)
77
Horsepower (hp)
4.7
Internal Supplier Part #
DXCMLA4708065
Internet Product Code (IPC)
382C4B70FAD
Length (in)
31.5
Manufacturer Warranty
2 Year Limited Warranty on oil lubricated pumps. 1 Year Limited Warranty on all other components.
Maximum Pressure Rating (psi)
155
Motor Type
Induction
Operating Position
Vertical
Package Depth
35
Package Height
77
Package Weight
350
Package Weight (lbs)
354
Tank Capacity (gal)
80
Tank Configuration
Single
Tank Material
Steel
Tank Pressure Gauge
Yes
Type of Air Compressor Tank
Stationary
UL Listed
No
Voltage
230
Voltage Rating
230
Weight (lbs)
354
Wheeled
No
Width (in)
34.75
