Description

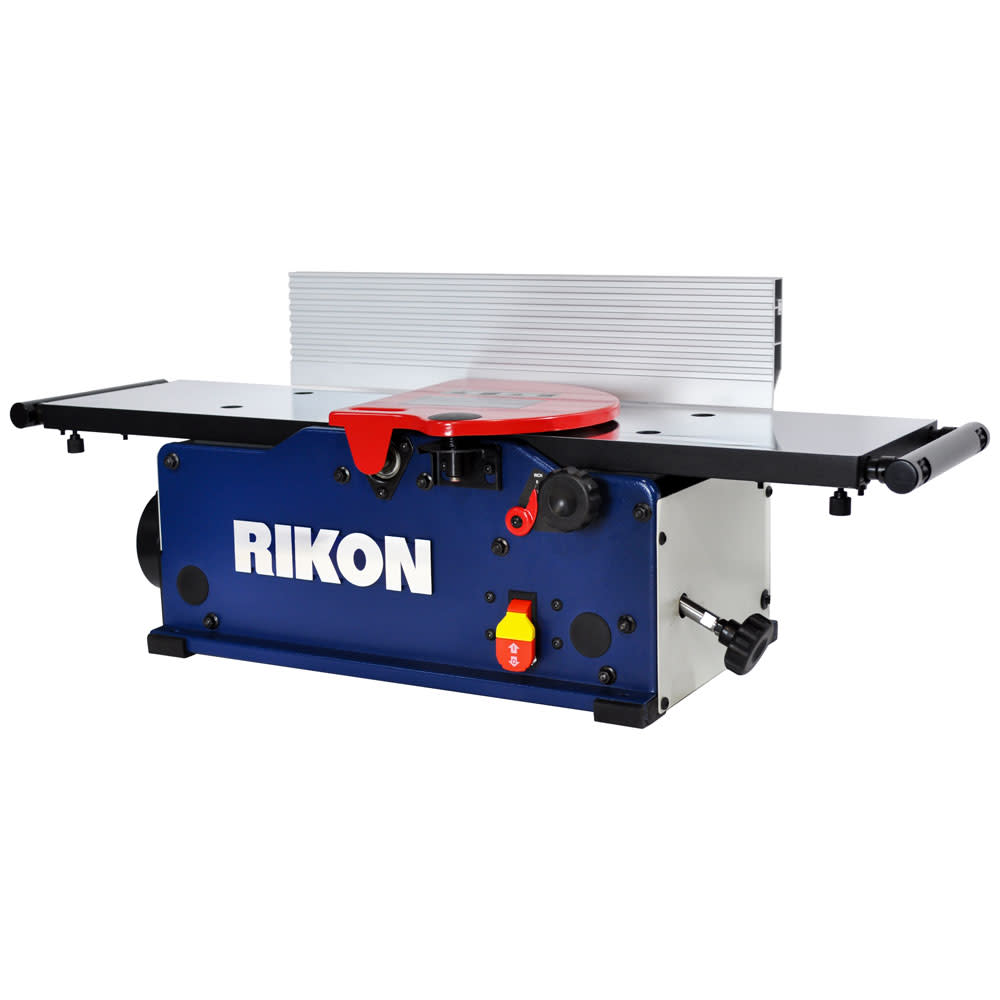

8 In. Benchtop Jointer w/Helical Cutter Head
This 8 In. benchtop jointer has a 6-row helical style cutter head with 16 carbide, 2 edge insert cutters for super cutting action. Table extensions expand the work surface from 30.5 to 51.5 In. Portable at only 49 lbs. Easy to read depth scale. Safety on/off switch.
Features

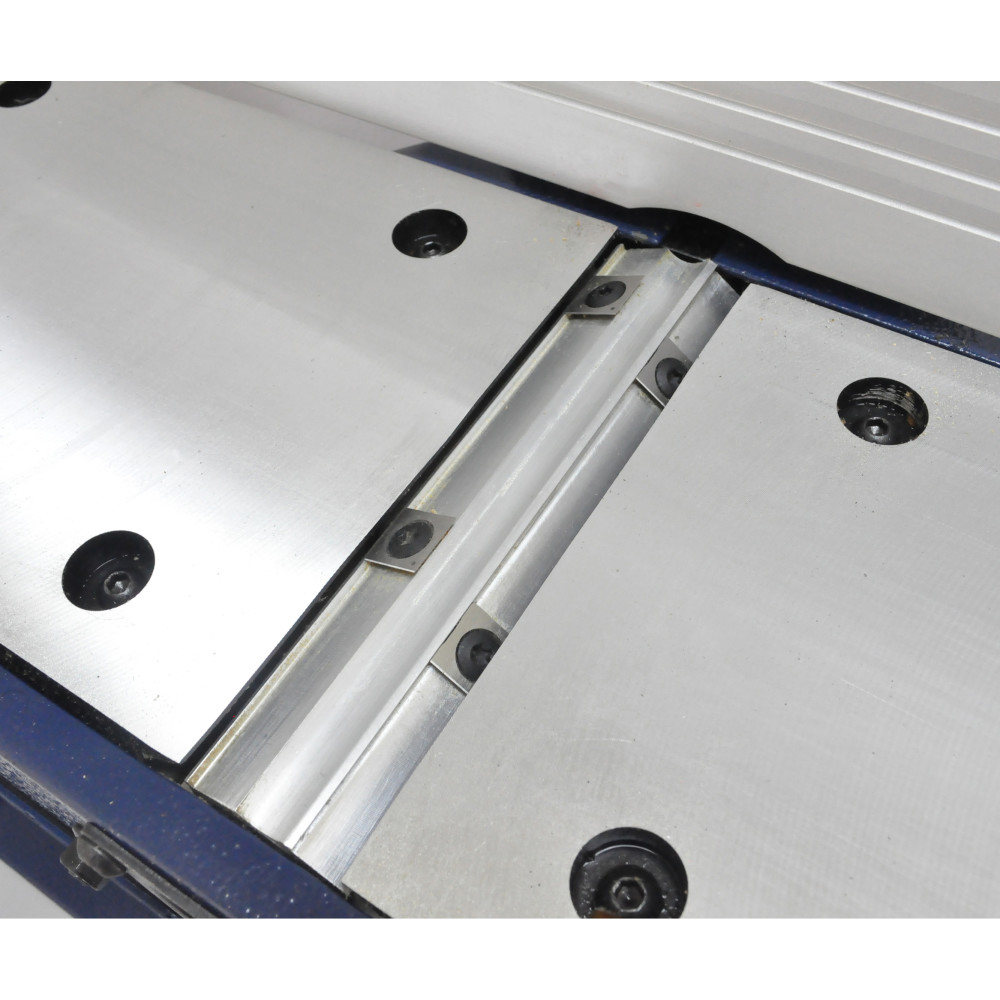

Helical cutter head w/16 two-sided carbide inserts

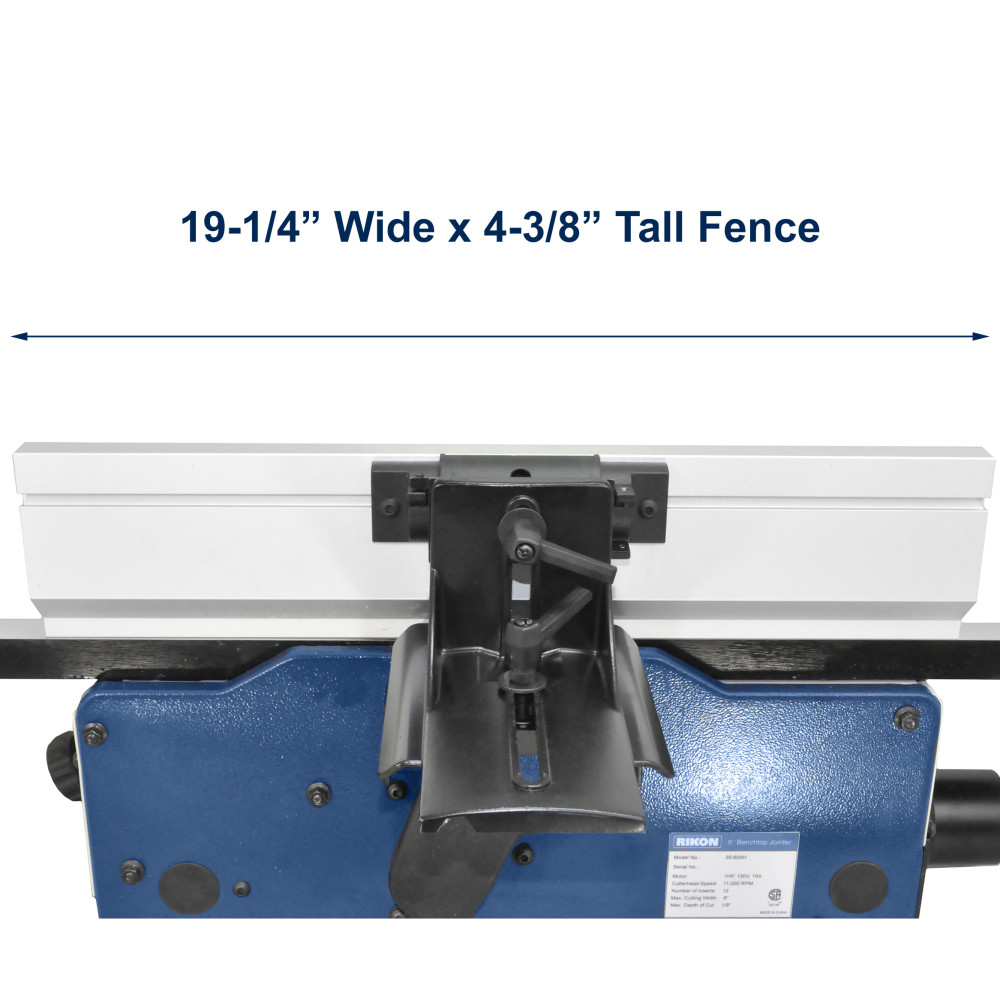

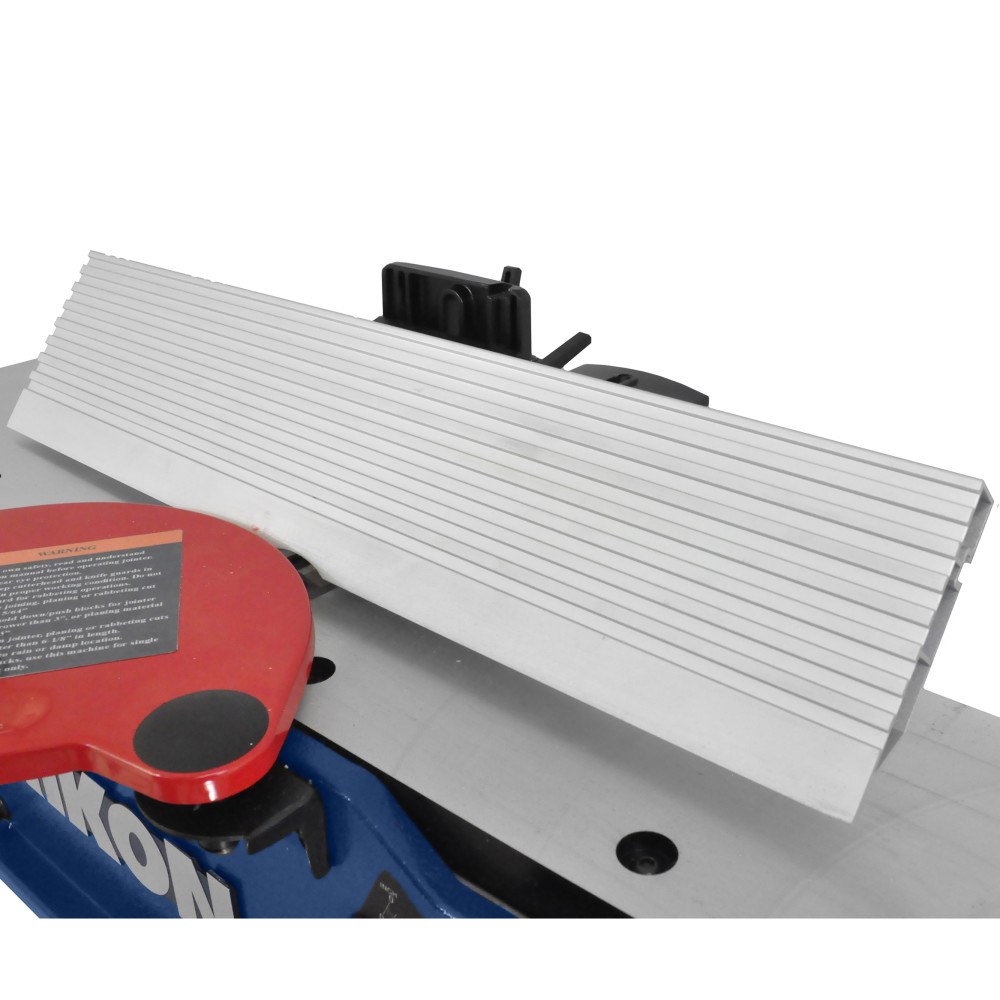

Large 19-3/4 x 4-3/8 In. fence tilts 90 to 135 degrees

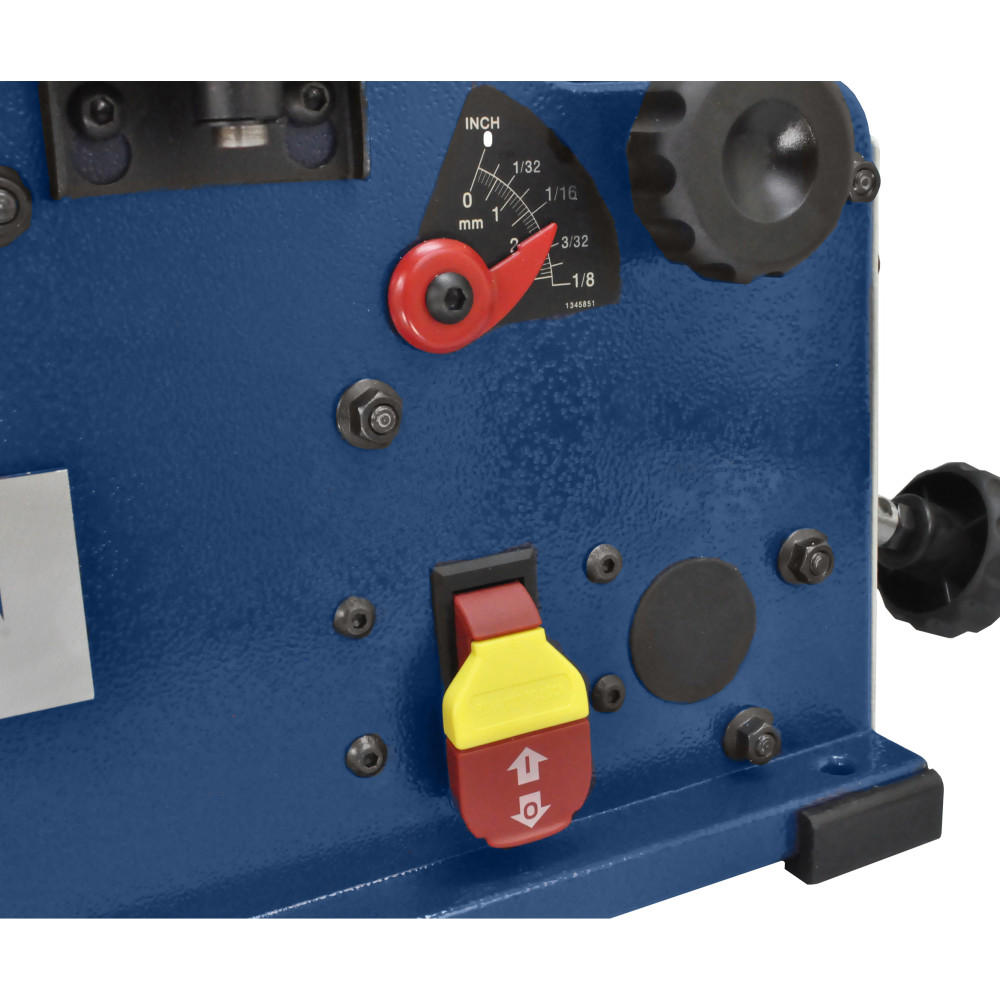

Safety on/off switch
Easy to read depth scale
Portable at only 49 lbs.
Full table size 30-1/2 x 8-3/16, extends to 51-1/2 x 8-3/16 In.
Specifications
Acme Tools Brand Name
RIKON
Acme Tools Part Number
20-800H
Amperage (A)
10
Assembled Depth (in)
51.5
Assembled Height (in)
13
Assembled Weight (lbs)
49
Assembled Width (in)
18.75
Bench or Stationary
Bench
Blade Count
16
Blade Cutting Material
Carbide
Blade Height (in)
0.56
Blade Length (in)
0.56
Blade Thickness (in)
0.77
Blade Type
Carbide
California Proposition 65 Warning Required
Yes
Caster Platform Included
No
Color/Finish
Blue
Cord Length (ft)
6
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes
Cuts Per Minute
32000
Cutter Head Type
Helical
Drive Motor System
Electric
Dust Port
Yes
Dust Port Outside Diameter (in)
2.5 or 4
Electrical Cord Configuration
3-wire
ETL Listed
No
Feed Rate/s (Ft/Min)
Manual
Fence Height (in)
1900-01-03
Fence Length (in)
19-3/4
Fence Tilt
Yes
Fence Tilt Range
90 to 135 degrees
Fence Type
Adjustable
Height (in)
13
Helical Cutter Head
Yes
Housing Material
Steel
Integrated Rabbeting Edge
No
Lowest Operational Speed (rpm)
12000
Material Cut
Wood
Maximum Board Thickness (in)
0.5
Maximum Cutting Depth (in)
0.125
Maximum RPM
12000
Maximum Speed (rpm)
20000
Maximum Stock Length (in)
8
Maximum Width Cutting Capacity (in)
6
Minimum Stock Length (in)
10
Motor Bearings
Sealed
Motor Horsepower (hp)
1 1/2 HP
Package Contents
Jointer
Package Depth
36.25
Package Height
11.5
Package Weight
49
Package Weight (lbs)
49
Phase
1
Positive Stops
90° & 135°
Rabbeting Depth (in)
0
Set / Individual
Individual
Shank Diameter (in)
0
Sharpenable
Yes
Speeds
12,000 RPM
Spindle Lock
No
Spindle Speed (RPM)
0
Stand Included
No
Switch Type
Safety
Table Height From Floor (In)
Benchtop
Table Length (in)
30.5
Table Material
Aluminum
Table Space in Front of Blade
5
Table Width (in)
8.1875
UL Listed
No
Unit Design
Benchtop
Variable Speed
No
Weight (lbs)
49
