Description

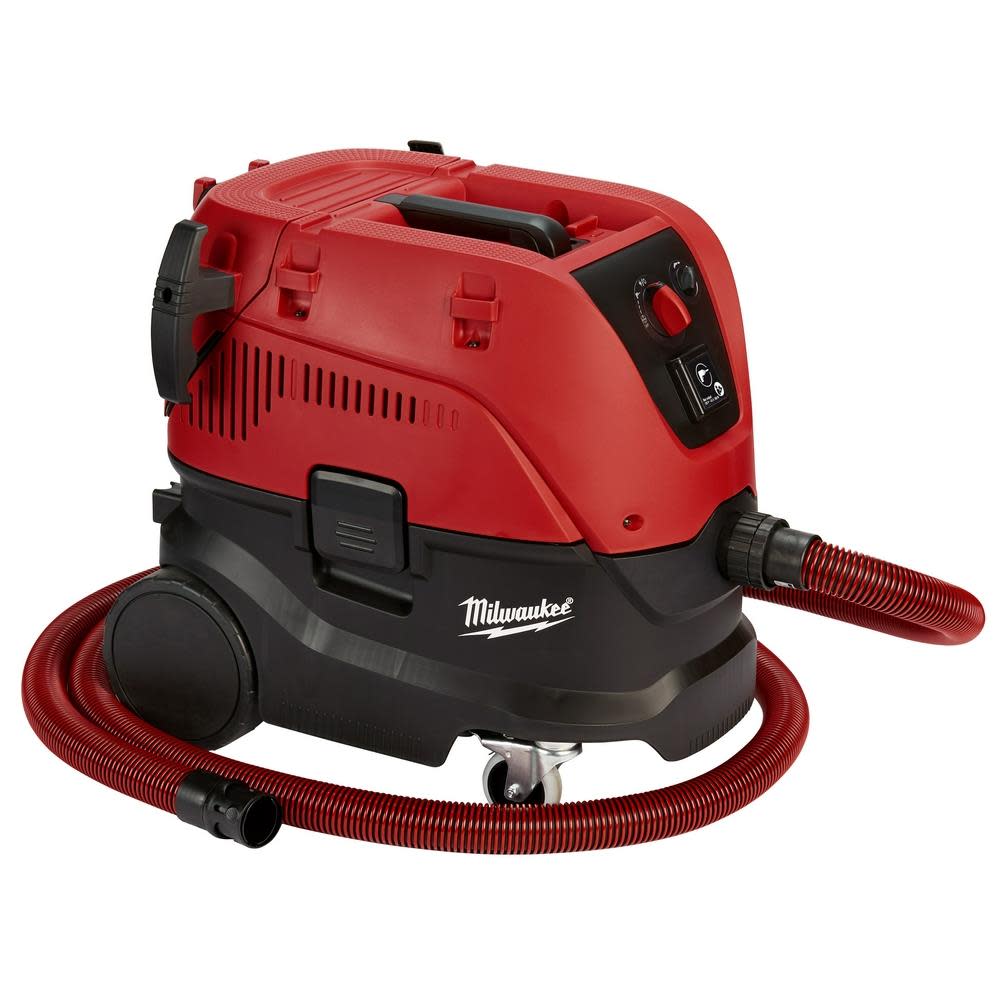

8 Gallon Dust Extractor

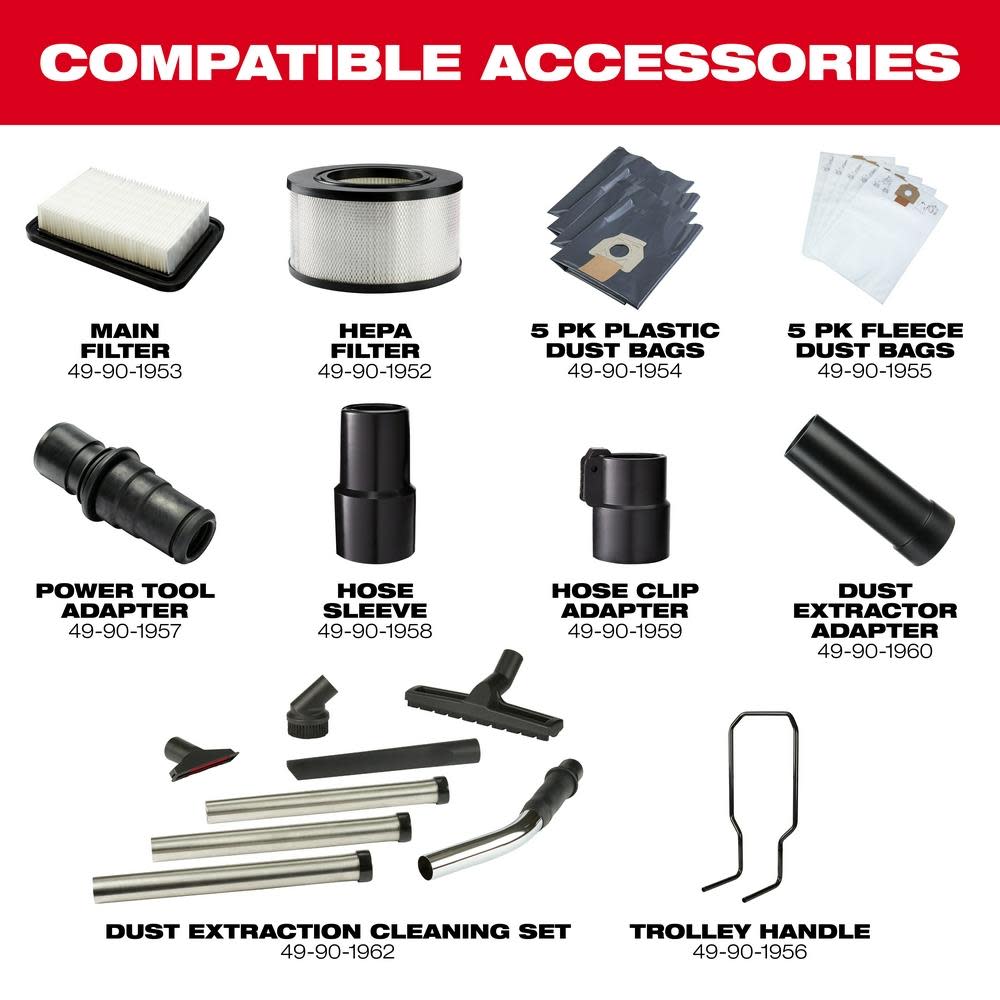

The Milwaukee 8 Gallon dust extractor provides users with an OSHA-compliant solution for the regulation on respirable crystalline silica dust (29 CFR 1926.1153). An automatic filter cleaning mechanism helps maintain consistent airflow and suction at 148 CFM in tough dust-producing applications. The extractor’s two step filtration system includes a HEPA filter, which captures 99.97% of all particles greater than 0.3 microns for best in class filtration and safety. For added convenience, an on-board tool activated plug allows users to start and stop the vacuum with a power tool to increase productivity. The adapters included are compatible with all Milwaukee dust extraction accessories.

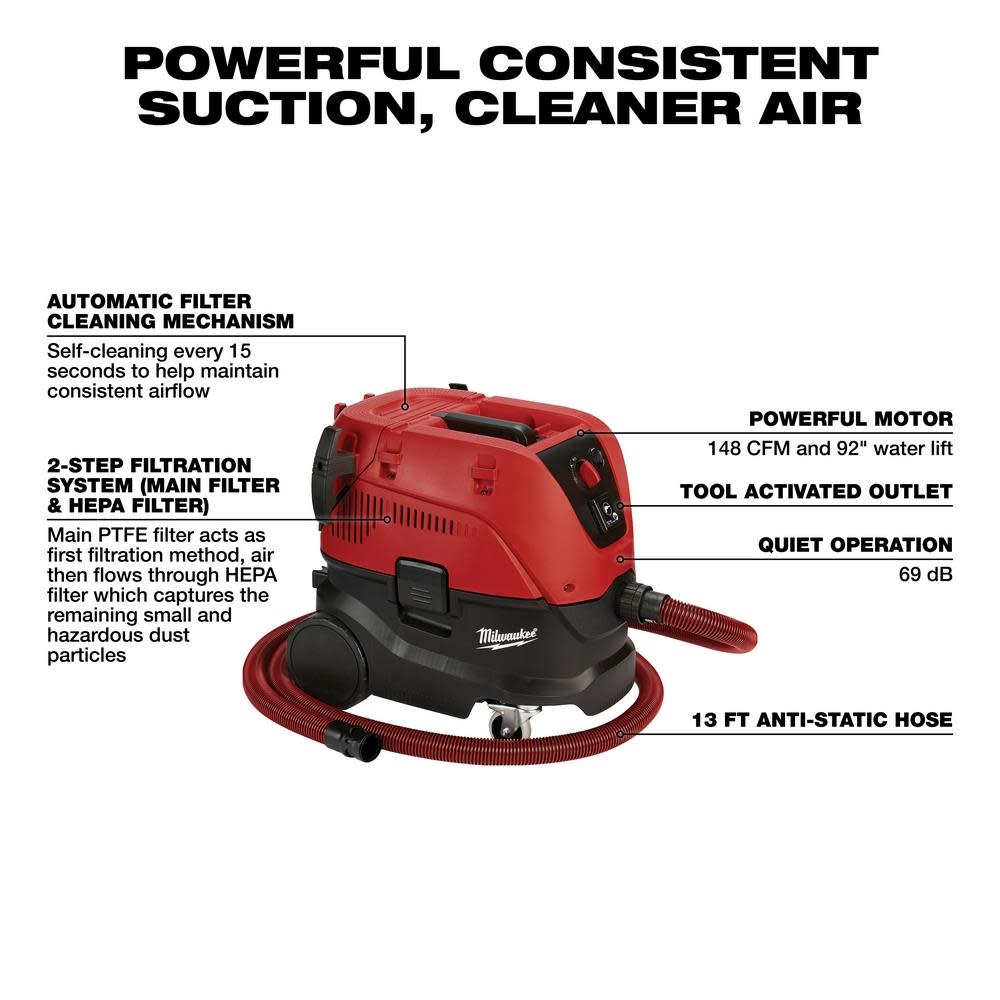

Features
Unique two step filtration system includes a HEPA filter, which captures 99.97% of all particles greater than 0.3 microns or greater
On-board tool activated plug allows users to start and stop the vacuum with a power tool
An automatic filter cleaning mechanism helps maintain consistent airflow in tough dust-producing applications
OSHA-compliant solution for the regulation on respirable crystalline silica dust (29 CFR 1926.1153).
Quiet operation: 69dB
Suction control dial for performance control
13 ft. anti-static hose
Large wheels, locking swivel casters for jobsite durability
Water level float valve shuts off suction when tank is full
Specifications
Acme Tools Brand Name
MILWAUKEE
Acme Tools Part Number
8960-20
Air Purifier
Yes
Air Volume (CFM)
148.000000
Assembled Weight (lbs)
36
Assembly Required
Yes
Automatic Shut-Off
Yes
California Proposition 65 Warning Required
No
Color / Finish
Red & Black
Cordless / Corded
Corded
Country of Origin
Hungary
Current Range (A)
4.6
Decibel Rating (dB)
69.0
Filtration
Micron
Height (in)
22.2
HEPA Filter
Yes
Horsepower (hp)
1.930000
Hose Diameter (in)
1.4200
Housing Material
Plastic
Internal Supplier Part #
896020
Internet Product Code (IPC)
CF6A2854396
Length (in)
22.2
Manufacturer Warranty
3 Years
Motor Type
7.4 AMP

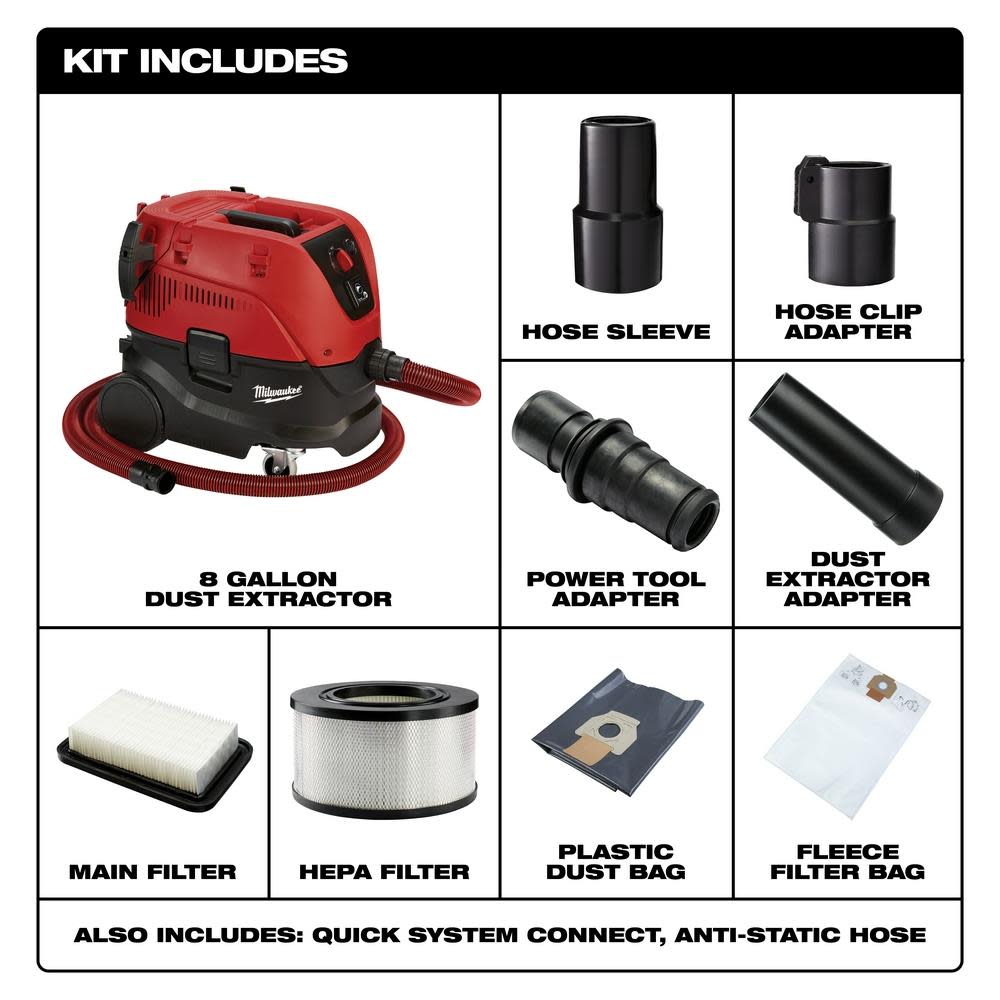

Package Contents
(1) dust extractor, (1) 13′ hose
Package Depth
31.75
Package Height
16.3
Package Weight
49.3
Package Weight (lbs)
45.5
Recommended Safety Equipment
Eye protection for user and bystanders
Remote Control
No
Tools or Other Items Required For Assembly
Screw driver
Vacuum Type
Shop Vac
Voltage
120
Voltage Rating
120 VAC
Weight (lbs)
36.0
Width (in)
15.2
