Description

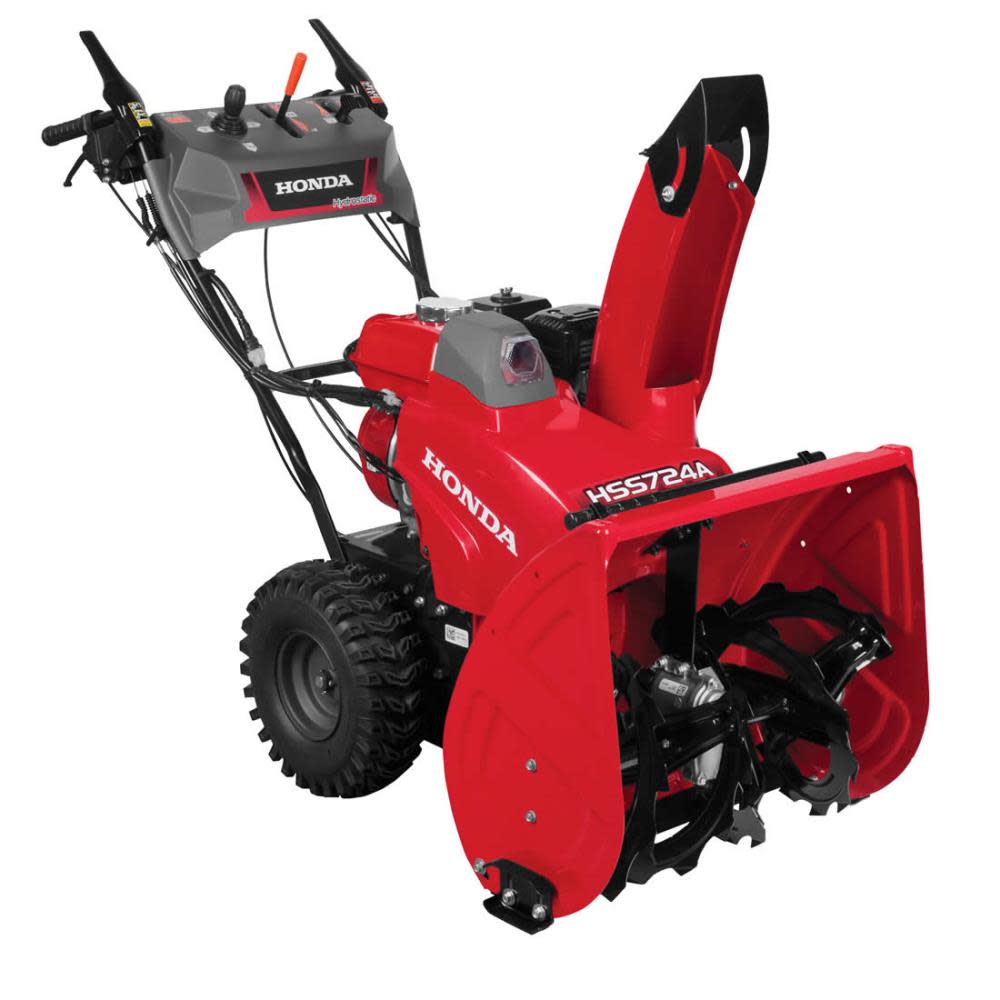

7HP 24In Two Stage Wheel Drive Snow Blower
ACME Tools is a Honda Authorized Dealer. The Honda wheel driven system makes for superior traction through practically any snow condition. Honda engines have long been recognized as the industry leader in providing reliable, quiet, fuel-efficient power. The dual-stage HS724AAW is powered by an ultra-robust GX200, 4-stroke, overhead valve (OHV) hydrostatic transmission.
Features
Easy start Honda GX200 engine
Dual-stage
Wheel drive
24 In. wide clearing width
The hydrostatic transmission lets you have variable speed control
Drive-control levers that allow for one-handed operation
Meets all EPA and CARB emission standards
Easy-to use chute direction control
Operator-friendly controls with large on/off switch
Easy-access spark plug and fuel drain
Metal auger housing
Work light
Specifications
Acme Tools Brand Name
HONDA
Acme Tools Part Number
HSS724AAW
Acme Tools Supplier Bullet 1
In Store Pick Up Only. Item not available for shipment.
Assembled Weight (lbs)
198.4
Assembly Required
Yes
Auger Material
Steel serrated
Auger Type
Serrated
California Proposition 65 Warning Required
Yes
CARB Compliant
No
Chute Direction Control
Electric
Chute Material
Steel
Chute Pitch Control
Joystick
Clearing Width (in)
24
Color / Finish
Red/Black steel
Country of Origin
United States
Discharge Chute Rotation Angle (Deg)
210
Drift Cutters
No
Drive System
Wheel Driven
Engine
Honda Honda GX200
Engine Cycles
4 Cycle
Engine Displacement (cc)
196
ETL Listed
No
Fuel Mix Ratio
0
Fuel Tank Capacity (gal)
0.68
Handle Type
No Heated Handles
Headlights
Yes
Heated Handles
No
Horsepower (hp)
5.5
Housing Material
Metal
Impeller Diameter
0
Intake Height (in)
12
Internal Supplier Part #
HSS724AAW
Internet Product Code (IPC)
A6963EC4015
Manufacturer Warranty
3 year residential warranty, see manufacturer owner’s manual for all detailed warranty information.
Maximum Throwing Distance (Ft)
46
Number of Forward Speeds
Variable Speed
Number of Reverse Speeds
Variable Speed
Package Contents
Snowblower and Manual
Package Weight
198.4
Package Weight (lbs)
198.4
Recommended Oil & Capacity
SAE 5W-30, 0.63 US qt
Recommended Safety Equipment
See operating manual before use and safety labels on the snow thrower.
Rust Resistant
No
Skid Shoes
Yes
Small Engine Maximum Horsepower (hp)
5.5
Small Engine Maximum Torque (ft-lbs)
9.1
Stage
Two Stage
Start Type
Manual
Tire Diameter (in)
15
Tire Width (in)
7.5
UL Listed
No
Variable Speed
Yes
Weight (lbs)
218.3
