Description

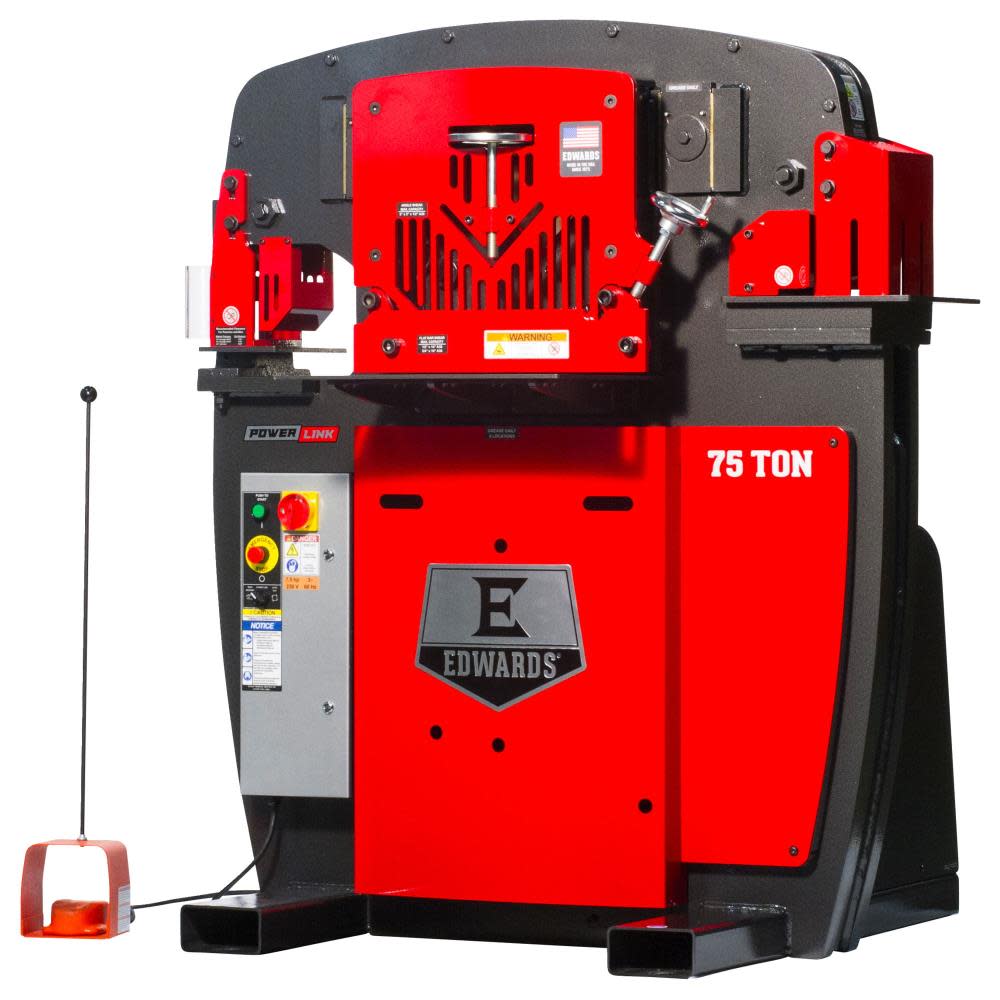

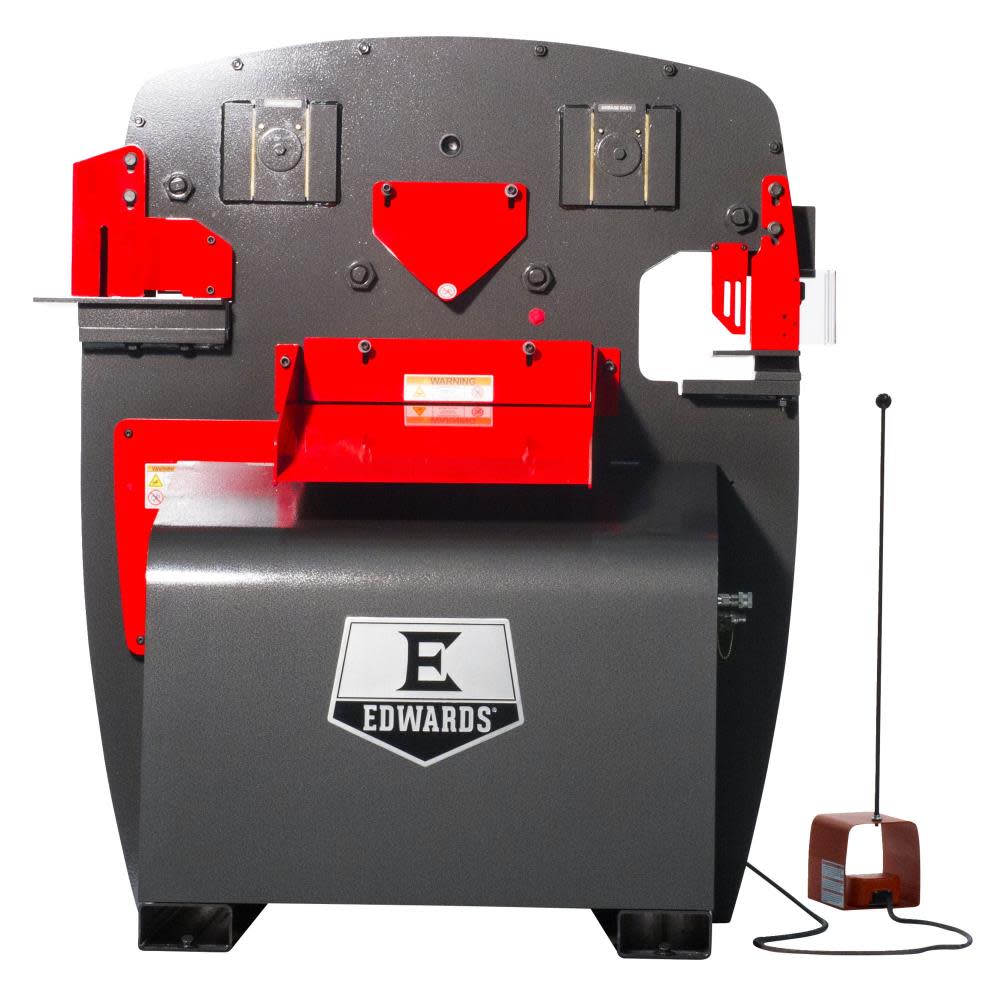

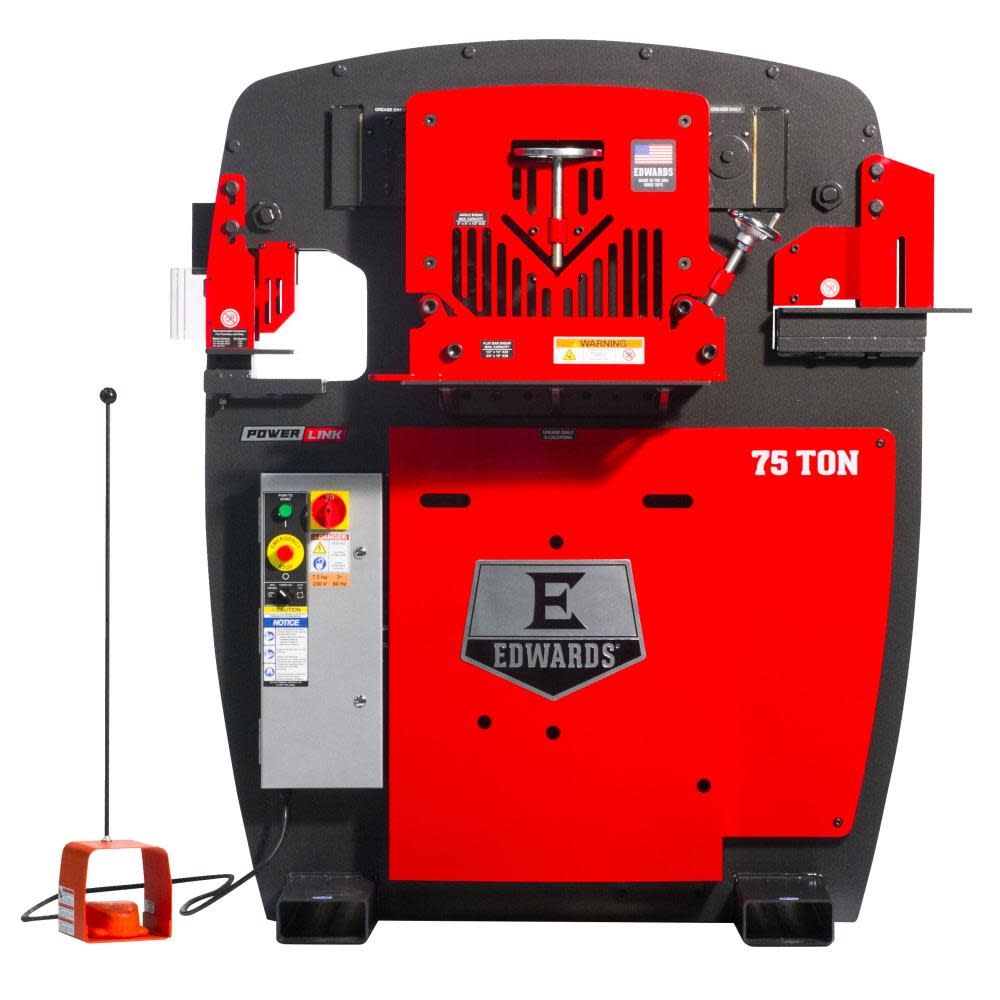

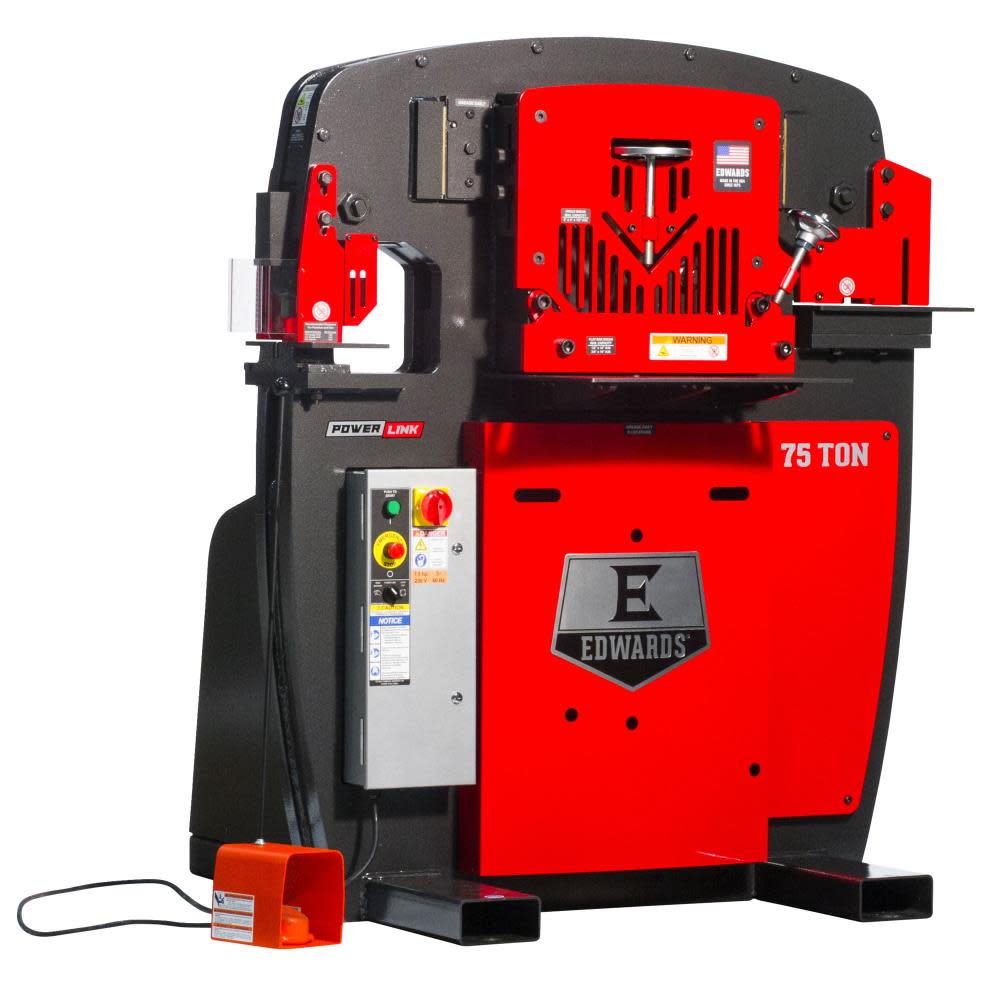

75 Ton Ironworker 3 Phase, 230v with PowerLink System
The Edwards 75 ton jaws ironworker offers you greater capacity to accomplish larger tasks. Its standard features include a punch assembly with pedestal die table, a 14 In. wide flat bar shear, angle shear and coper notcher. The punch assembly is easily converted to an open station designed to accept optional tooling accessories, allowing flexibility to customize your ironworker according to your needs. The factory installed PowerLink system allows your ironworker to act as a power source to our expanding line of innovative PowerLink hydraulic tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press.
Features
The shop standard
Four workstations: standard (4) – punch, flat bar shear, angle shear & coper notcher
9 additional attachments available to convert the punch workstation to your specific needs
ANSI B11.5 – 1988(02) compliant guarding
ETL/UL approved controls
Integrated e-stop, lock-out/tag-out
Optimized workstation heights for improved efficiency
Electric foot pedals with integrated jog control
Adjustable electric stoke control
Specifications
Acme Tools Brand Name
EDWARDS
Acme Tools Part Number
IW75-3P230-AC600
Amperage (A)
22.0
ANSI Safety Listing
Yes
Assembled Weight (lbs)
4018.0
California Proposition 65 Warning Required
Yes
Color / Finish
Gray with Red guards
Country of Origin
United States
ETL Listed
Yes
Horsepower (hp)
7.5
Internet Product Code (IPC)
B6B0B5425BC
Manufacturer Warranty
1 Year
Maximum RPM
1765
Motor Horsepower (hp)
7.5
Motor Voltage (V)
230.0
Overall Height (in)
66.0
Overall Length (in)
46.0
Overall Width (in)
69.0
Package Contents
Notcher
Package Depth
46
Package Height
66
Package Weight
4100
Package Weight (lbs)
4100
Reservoir Capacity (gal)
17.0
UL Listed
Yes
Voltage
230
Weight (lbs)
4018.0
