Description

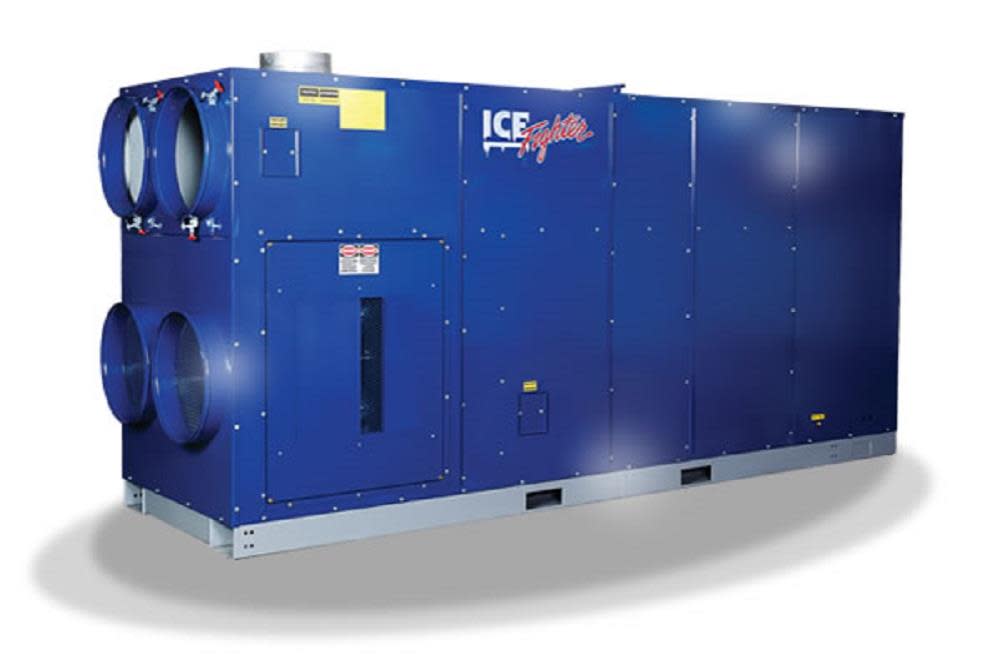

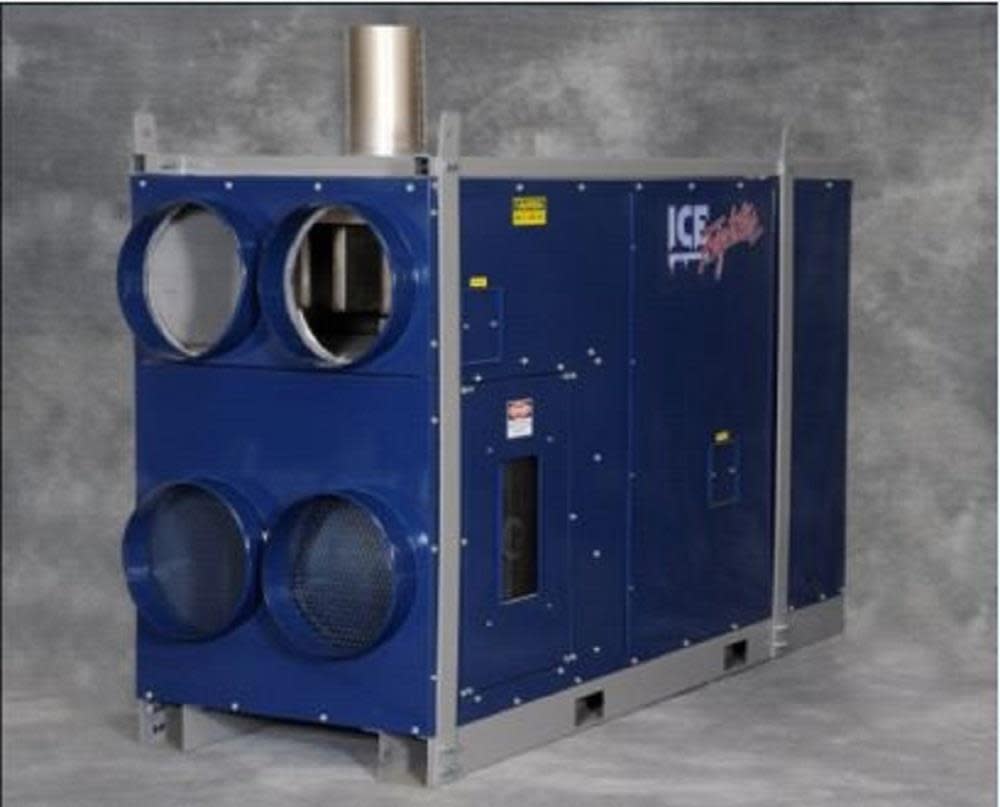

700,000 – 1,500,000 BTU/h Indirect Fired Heater IHS Series with Standard Air Return, Oil
For robust, powerful and dependable heating power from 700,000 – 1,500,000 BTU/h, the IHS series offers the highest static pressure in the industry of up to 5 In. With duct connections of 16 In. & 20 In. clean, dry heat can be delivered up to 100 ft from each outlet. Equipped with standard air return, the IHS series can be configured to provide maximum fuel efficiency savings. Heaters require special outfitting to work properly at elevations greater than 2,000 ft. Please contact our sales team for assistance.
Features
700,000 BTU/h
16 In. dust connections
Equipped with standard air return
Fuel efficient
Fully insulated
Satin coat/powder coat paint resists scratches and rust
Available in HED
5 HP motor
Specifications
Acme Tools Brand Name
FROST FIGHTER
Acme Tools Part Number
IHS700P-OIL
AFUE (%)
0
Air Delivery Configuration
Upflow/Horizontal
Assembled Weight (lbs)
1600
ASTM Specifications
(2) 16″ Duct inlet & outlet
BTU Heat Rating
700000
California Proposition 65 Warning Required
Yes
Color
Blue
Color / Finish
Royal Blue / Silver
Commercial / Residential
Commercial/Residential
Country of Origin
Canada
ETL Listed
Exempt
Filter Type
Fuel
Heater Type
Indirect Fired
HVAC Equipment Type
Indirect Fired Heater
Ignition Source
Electronic
Ignition System
Electric
Internal Supplier Part #
IHS700-OIL
Internet Product Code (IPC)
8FF2F753C5C
Manufacturer Warranty
12 Month Limited Manufacturer Warranty. See Owner’s Manual for Details.
Maximum CFM
4600
Overall Height (in)
59
Overall Length (in)
100
Overall Width (in)
35
Package Weight
1600
Package Weight (lbs)
1600
Portable
Yes
UL Listed
Exempt
Voltage
460
Voltage (V)
460
