Description
55 Ton Ironworker 3 Phase, 208 Volt, PowerLink, 10″ Brake

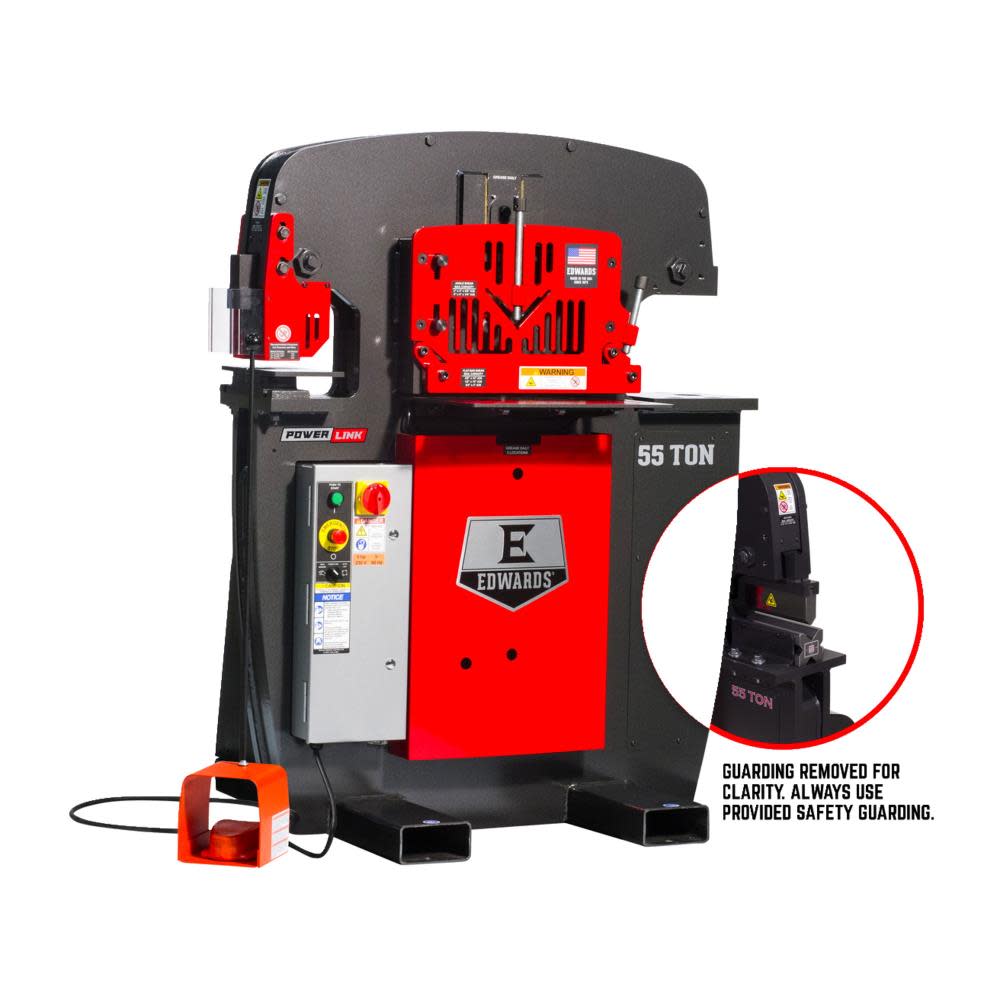

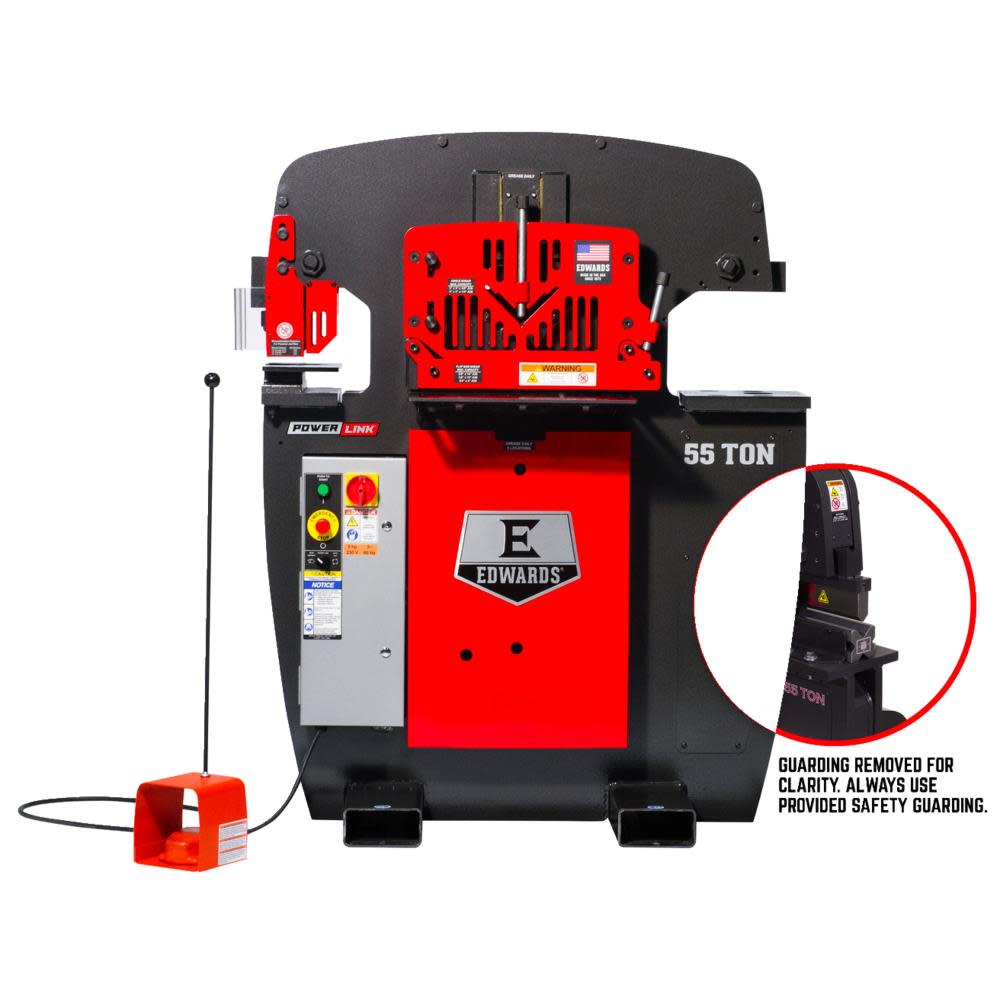

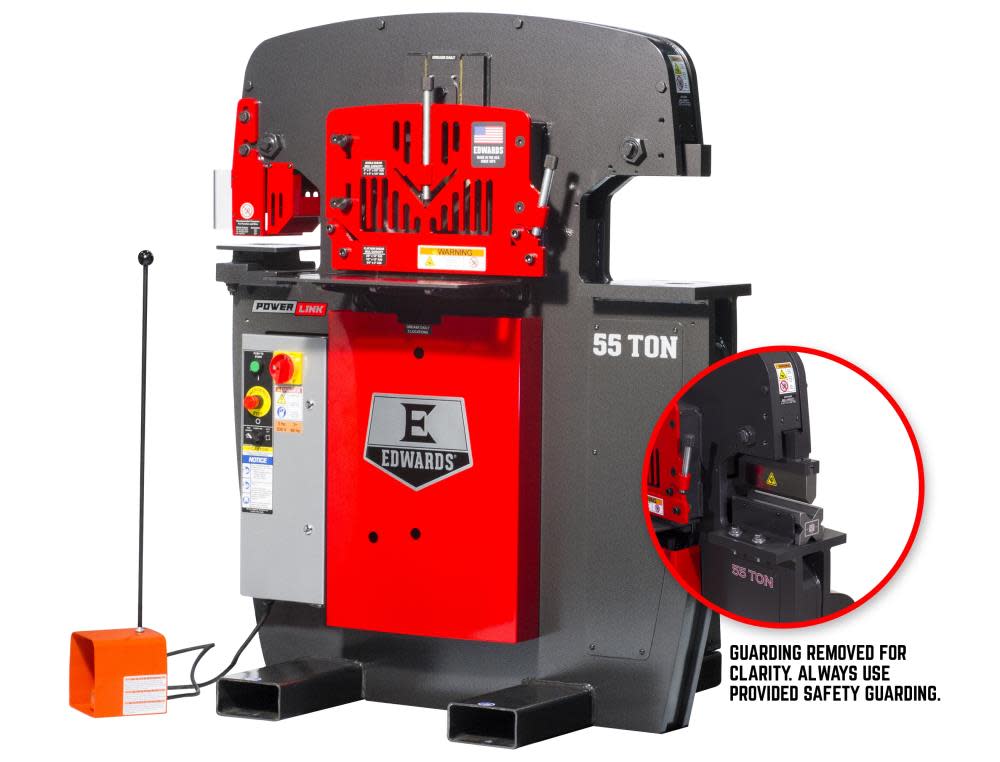

This 55 ton ironworker includes a factory installed 10″ brake and 2 LED lights and provides more than enough power for the larger projects and offers the ability to customize one of its 4 workstations with 11 interchangeable attachments. There are 17 accessories that improve operator accuracy and productivity. Great for general use from medium size shops to full factory maintenance departments. The PowerLink™ system increases your capabilities by turning your ironworker into a power source for our line of hydraulic tools. (Guarding removed in featured image for clarity. Always used provided safety guarding.)
Features
Four workstations: standard (3) – punch, flat bar shear & angle shear; open (1) – factory installed coper notcher
11 Interchangeable attachments available to tailor the ironworker to your needs
17 Optional accessories available to increase precision and efficiency
PowerLink™ system increases your capabilities turning your ironworker into a power source for our ever expanding line of hydraulic tools
Compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend and cope all in one machine
Optimized workstation heights for improved efficiency
Electric foot pedal with integrated jog control
Adjustable electric stoke control
Bright LED lights increase visibility
ETL certified controls
Specifications
Acme Tools Brand Name
EDWARDS
Acme Tools Part Number
55203522
Amperage (A)
14
ANSI Safety Listing
Yes
Assembled Weight (lbs)
2430
California Proposition 65 Warning Required
Yes
Color / Finish
Black & Red/Steel
Country of Origin
United States
CSA Certified
No
ETL Listed
Yes
Horsepower (hp)
5
Internal Supplier Part #
55203522
Internet Product Code (IPC)
D095302675C
Manufacturer Warranty
1 Year
Maximum RPM
1725
Motor Horsepower (hp)
5
Motor Voltage (V)
208
Overall Height (in)
55.25
Overall Length (in)
36.125
Overall Width (in)
44.825
Package Depth
45
Package Height
62
Package Weight
2480
Package Weight (lbs)
2480
Phase
Three Phase
Reservoir Capacity (gal)
7
UL Listed
Yes
Voltage
208
Weight (lbs)
2430
