Description

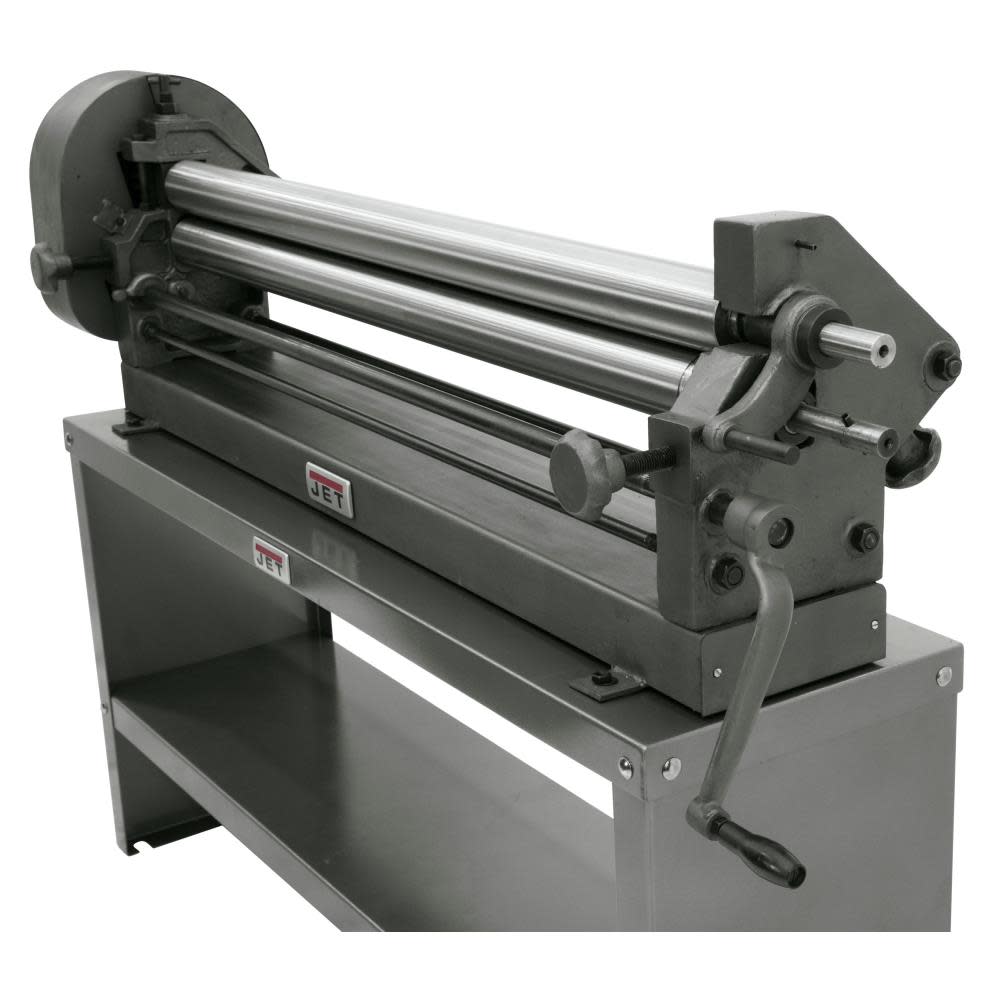

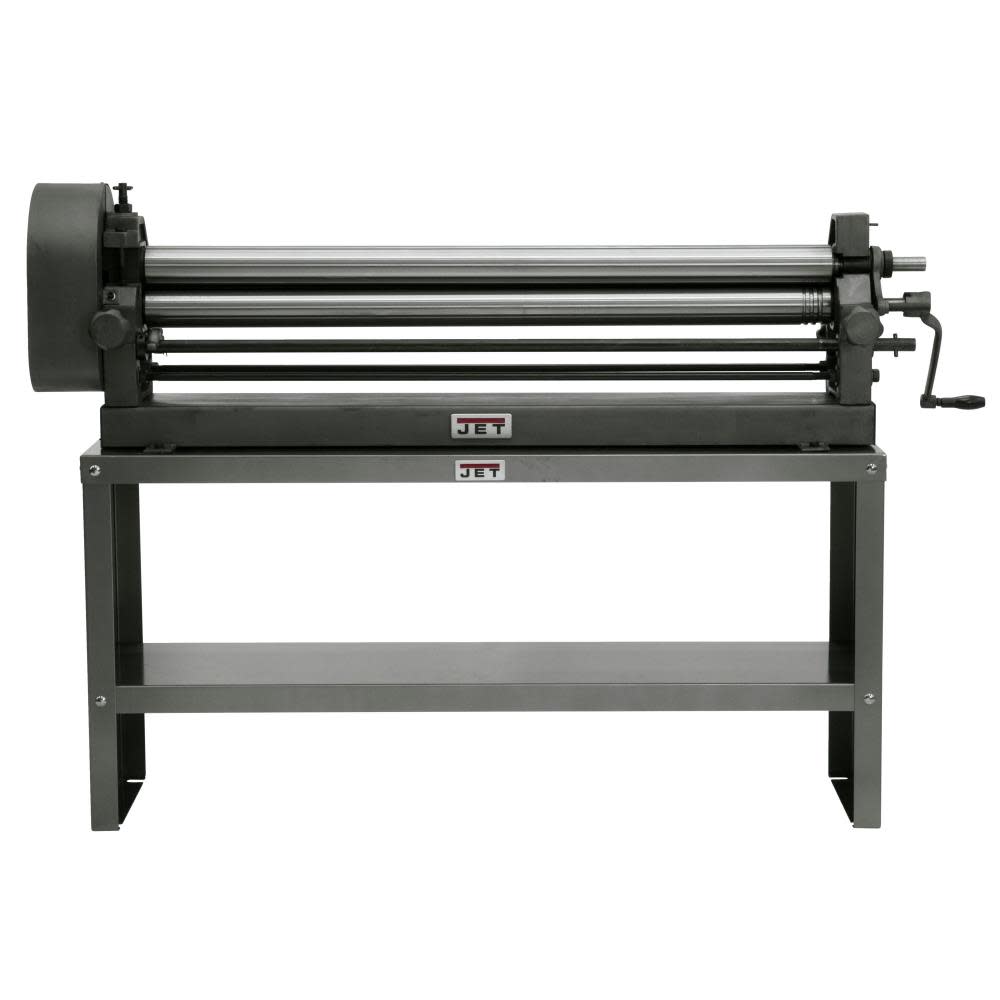

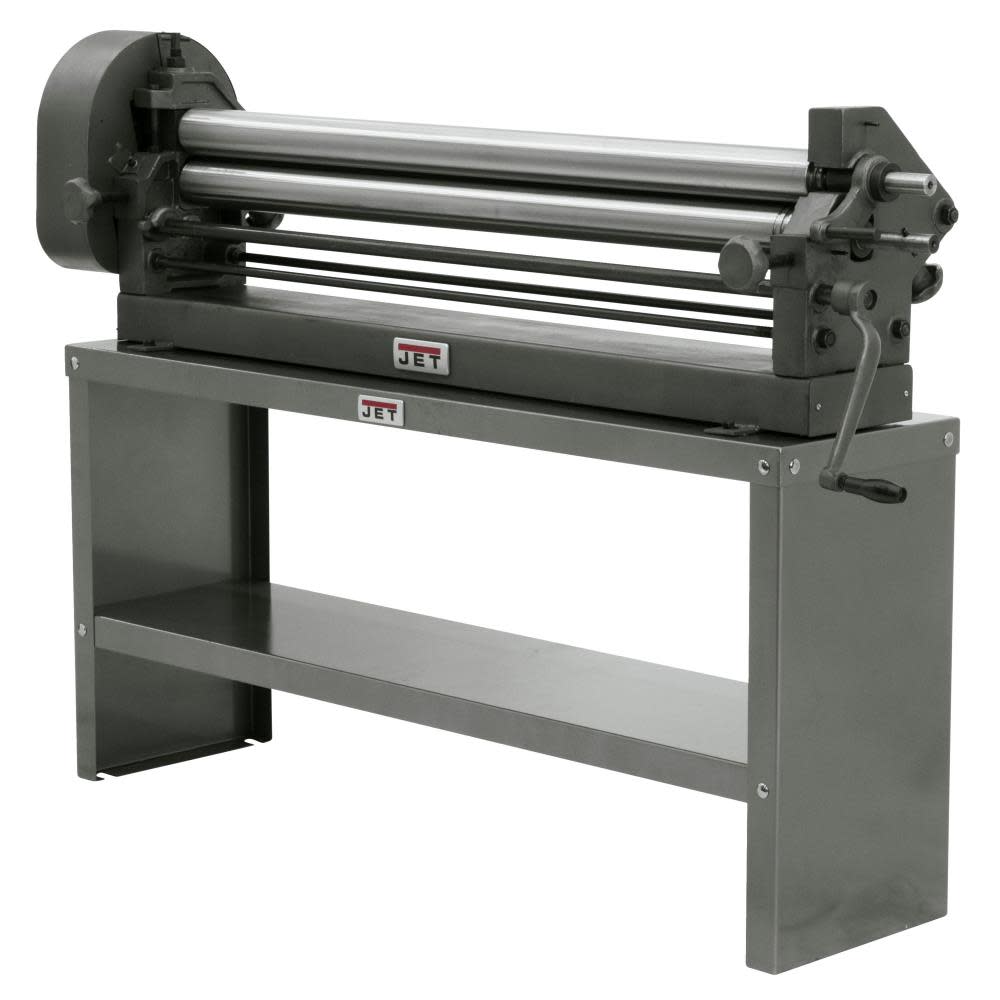

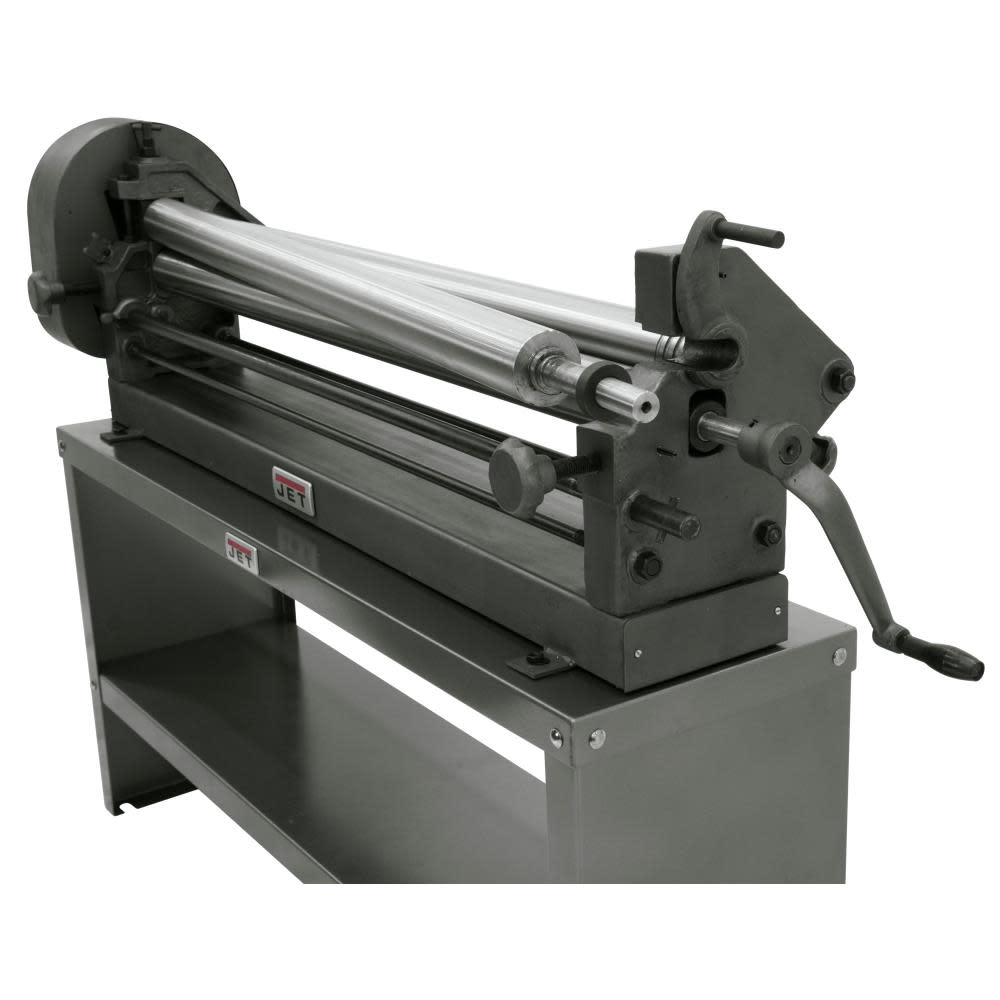

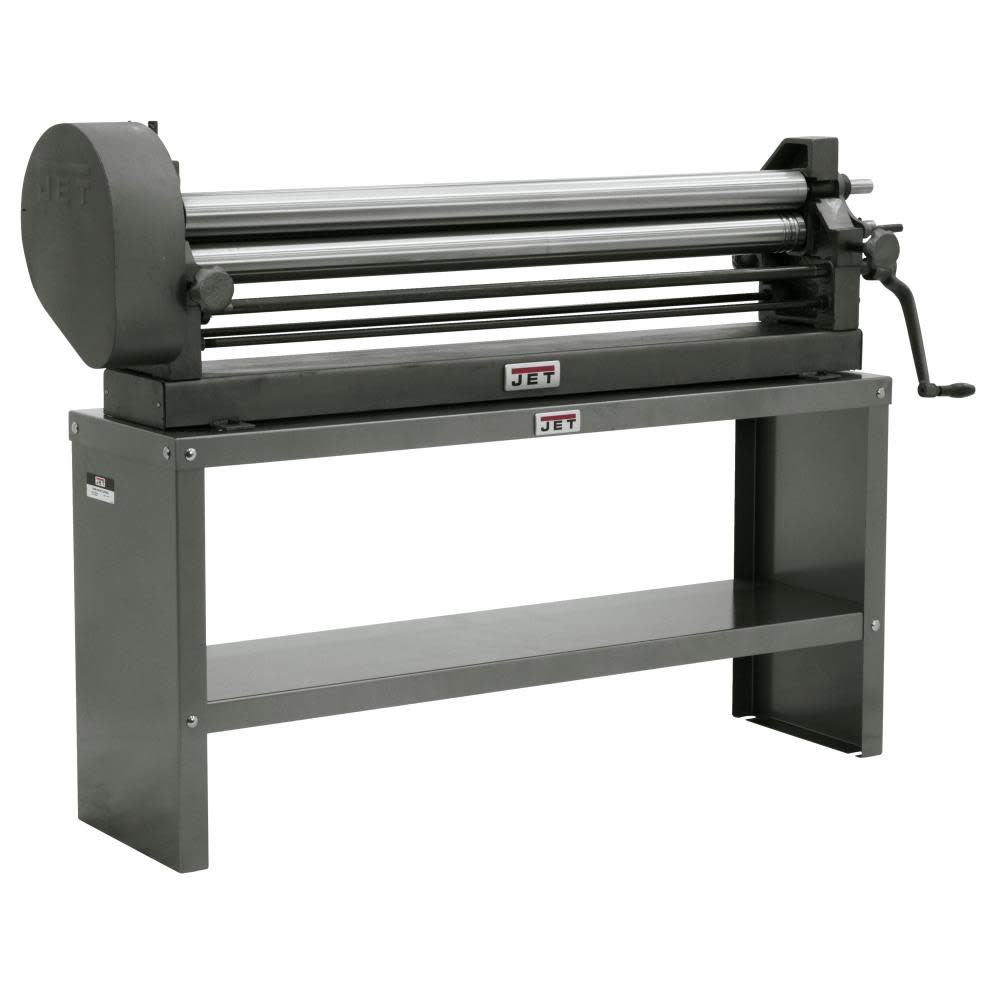

50″ x 16 Gauge Bench Model Slip Roll
Jet manual slip rolls have a forming width of 24 In., 36 In. & 50 In. with a capacity of 20, 22 & 16 gauge mild steel. These machines have two driven rolls of precision turned, ground and polished carbon steel. They are the perfect sheet metal forming machines to have in any general fabrication, school, racing or HVAC shop. The highly rigid construction frame ensures precision roll bending for decades of production. This sheet metal roller comes standard with three wire or rod grooves. Stand pictured under Bench Model Slip Roll sold separately: item number 754051
Features
Perfect tool for sheet metal forming in HVAC and FAB shops
Suitable for many industrial, educational and vocational shop uses
Precision turned carbon steel rolls that are ground and polished
Large roll adjusting screws facilitate lifting upper roll for easy material removal
Wire grooves are standard on SR-2024N, SR-2236N and SR-1650N
Stand sold separately: item number 754051
Quick change of upper dies
Retractable handle makes machine easy to move around the shop
Wider base support to prevent movement of machine while in use
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
756050
Assembled Weight (lbs)
565
California Proposition 65 Warning Required
Yes
Color / Finish
See image
Country of Origin
China
Gauge Capacity (ga)
16
Height (in)
24
Internet Product Code (IPC)
B5FDF89AB45
Length (in)
68
Manufacturer Warranty
2 year warranty
Material
steel
Maximum Width Capacity (in)
30.0
Number of Rollers
0
Package Depth
69.25
Package Height
23
Package Weight
573
Package Weight (lbs)
573
Power Source
Electric
Swivel Wheel
No
Weight (lbs)
573
Width (in)
22
Wire Grooves
No
